Which vehicles does the COMP Cams 189-400-13 fit?

Fits 2008 to 2016 Cadillac Escalade, Escalade ESV, Escalade EXT, and 3 more makes. Only fits applications with 12606358 VVT/Camshaft Phaser Actuator. Verify with a GM Dealer before ordering. Other solenoid is 12585994, this solenoid calls for either 156- or 656- camshafts.

How much is shipping and when does it ship?

Ground shipping in Canada is free on orders of $100 and up, $9.99 under that.

Can Northern Performance install it?

Yes. Buy it online and have us install it at our Service Centre. The Service Centre is at 1164 Walkers Line, Burlington, Ontario.

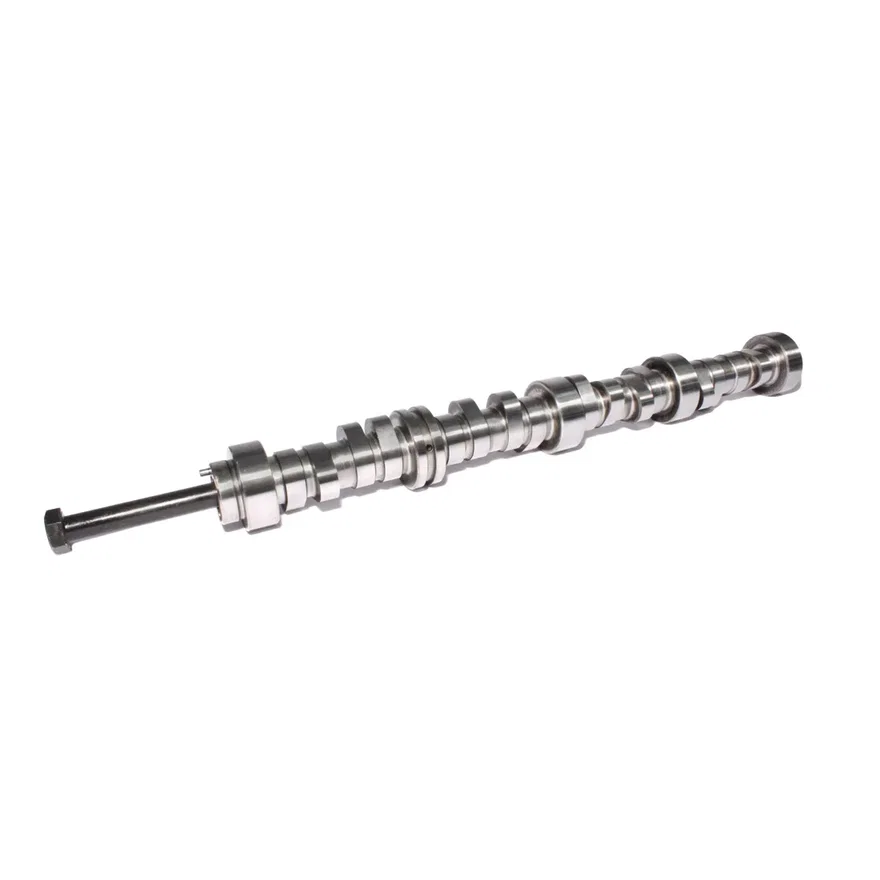

COMP Cams XFI RPM HI-LIFT 210/224 Hydraulic Roller Cam for GM LS GEN IV w/ VVT

Mfg Part #: 189-400-13
NP#: COM189-400-13
Brand
Fitment Note: Only fits applications with 12606358 VVT/Camshaft Phaser Actuator. Verify with a GM Dealer before ordering. Other solenoid is 12585994, this solenoid calls for either 156- or 656- camshafts.

Fits 2008 to 2016 Cadillac Escalade, Escalade ESV, Escalade EXT, and 3 more makes. See every vehicle

$908.99 CAD

Free shipping in Canada

Availability:

Contact [email protected] to check before you order.

Book installation at our Service Centre

Does this fit your vehicle?

Description

XFI RPM HI-Lift 210/224 Hydraulic Roller Cam

Advertised Exhaust Duration	277 deg
Advertised Intake Duration	263 deg
Amazon ASIN	B0066T2CZK
Assembly Lubricant Included	No
Basic Operating RPM Range	1,500-6,600 RPM
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?	Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?	Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?	Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?	No
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?	Yes, but must be a race/competition only vehicle.
Cam Type	Hydraulic Roller
Camshaft Gear Attachment	1-Bolt
Camshaft Material	Billet Steel
Camshaft Series	XFI RPM Hi-Lift
Engine Family	GM LS GEN IV Single Bolt w/ VVT (12606358) and w/o AFM 8 Cylinder (2008-2015)
Exhaust Duration at .050 inch Lift	224 deg
Exhaust Valve Lift	0.568 in
Grind Number	263PIIHR14
Intake Duration at .050 Inch Lift	210 deg
Intake Valve Lift	0.556 in
Lifter Type	Hydraulic Roller
Lifters Included	No
Lobe Separation	114 deg
Usage	Street/Strip
Valve Springs Required	Yes
Brand	COMP Cams
Mfg part #	189-400-13

Fits these vehicles

Year	Make	Model	Submodel	Engine
2008 - 2009	Cadillac	Escalade	Base, Platinum	6.2L 376 V8
2010	Cadillac	Escalade	Base, Hybrid, Hybrid Platinum, Platinum	6.0L 364 V8, 6.2L 376 V8
2011 - 2013	Cadillac	Escalade	Base, Hybrid, Hybrid Platinum, Luxury, Platinum, Premium	6.0L 364 V8, 6.2L 376 V8
2014	Cadillac	Escalade	Base, Luxury, Platinum, Premium	6.2L 376 V8
2015	Cadillac	Escalade	Platinum, Premium	6.2L 376 V8
2016	Cadillac	Escalade	Platinum	6.2L 376 V8
2008 - 2010	Cadillac	Escalade ESV	Base, Platinum	6.2L 376 V8
2011 - 2014	Cadillac	Escalade ESV	Base, Luxury, Platinum, Premium	6.2L 376 V8
2015	Cadillac	Escalade ESV	Platinum, Premium	6.2L 376 V8
2008 - 2010	Cadillac	Escalade EXT	Base	6.2L 376 V8
2011 - 2013	Cadillac	Escalade EXT	Base, Luxury, Premium	6.2L 376 V8
2008 - 2009	Chevrolet	Avalanche	Base, LS, LT, LTZ	5.3L 325 V8
2010	Chevrolet	Avalanche	Base	5.3L 325 V8
2011 - 2012	Chevrolet	Avalanche	LS, LT, LTZ	5.3L 325 V8
2013	Chevrolet	Avalanche	Black Diamond LS, Black Diamond LT, Black Diamond LTZ	5.3L 325 V8
2010 - 2015	Chevrolet	Camaro	SS	6.2L 376 V8
2010 - 2012	Chevrolet	Colorado	LT	5.3L 325 V8
2008 - 2014	Chevrolet	Express 1500	Base, LS, LT	5.3L 325 V8
2010 - 2017	Chevrolet	Express 2500	Base, LS, LT	4.8L 294 V8, 6.0L 364 V8
2018 - 2019	Chevrolet	Express 2500	Base, LS, LT	6.0L 364 V8
2010 - 2017	Chevrolet	Express 3500	Base, LS, LT	4.8L 294 V8, 6.0L 364 V8
2018 - 2019	Chevrolet	Express 3500	Base, LS, LT	6.0L 364 V8
2017	Chevrolet	Express Cargo	LS	6.0L 364 V8
2017 - 2018	Chevrolet	Express Pasajeros	LS	6.0L 364 V8
2016 - 2017	Chevrolet	LCF 3500	Base	6.0L 364 V8
2008	Chevrolet	Silverado 1500	LT, LTZ, WT	5.3L 325 V8
2009	Chevrolet	Silverado 1500	LT, LTZ, WT	5.3L 325 V8, 6.2L 376 V8
2010 - 2013	Chevrolet	Silverado 1500	Hybrid, LS, LT, LTZ, WT, XFE	4.8L 294 V8, 5.3L 325 V8, 6.0L 364 V8, 6.2L 376 V8
2010 - 2014	Chevrolet	Silverado 2500 HD	LT, LTZ, WT	6.0L 364 V8
2015 - 2019	Chevrolet	Silverado 2500 HD	High Country, LT, LTZ, WT	6.0L 364 V8
2017 - 2018	Chevrolet	Silverado 3500	Base	6.0L 364 V8
2010 - 2014	Chevrolet	Silverado 3500 HD	LT, LTZ, WT	6.0L 364 V8
2015 - 2019	Chevrolet	Silverado 3500 HD	High Country, LT, LTZ, WT	6.0L 364 V8
2017 - 2019	Chevrolet	Suburban	HD	6.0L 364 V8
2008 - 2014	Chevrolet	Suburban 1500	LS, LT, LTZ	5.3L 325 V8
2010 - 2013	Chevrolet	Suburban 2500	LS, LT	6.0L 364 V8
2016 - 2019	Chevrolet	Suburban 3500 HD	LS, LT	6.0L 364 V8
2008	Chevrolet	Tahoe	LTZ	6.2L 376 V8
2009	Chevrolet	Tahoe	LS, LT, LTZ	5.3L 325 V8, 6.2L 376 V8
2010 - 2011	Chevrolet	Tahoe	Hybrid, LS, LT	5.3L 325 V8, 6.0L 364 V8
2012 - 2013	Chevrolet	Tahoe	Hybrid	6.0L 364 V8
2010 - 2012	GMC	Canyon	SLE, SLT	5.3L 325 V8
2008	GMC	Savana 1500	Base, LS, LT	5.3L 325 V8
2009 - 2010	GMC	Savana 1500	Base, LS, LT, SL, SLE	5.3L 325 V8
2011	GMC	Savana 1500	Base, LS, LT	5.3L 325 V8
2012 - 2013	GMC	Savana 1500	Base, LS, LT, SL, SLE	5.3L 325 V8
2014	GMC	Savana 1500	Base, LS, LT	5.3L 325 V8
2010	GMC	Savana 2500	Base, LS, LT, SL, SLE	4.8L 294 V8, 6.0L 364 V8
2011	GMC	Savana 2500	Base, LS, LT	4.8L 294 V8, 6.0L 364 V8
2012 - 2013	GMC	Savana 2500	Base, LS, LT, SL, SLE	4.8L 294 V8, 6.0L 364 V8
2014 - 2017	GMC	Savana 2500	Base, LS, LT	4.8L 294 V8, 6.0L 364 V8
2018 - 2019	GMC	Savana 2500	Base, LS, LT	6.0L 364 V8
2010	GMC	Savana 3500	Base, LS, LT, SL, SLE	4.8L 294 V8, 6.0L 364 V8
2011	GMC	Savana 3500	Base, LS, LT	4.8L 294 V8, 6.0L 364 V8
2012 - 2013	GMC	Savana 3500	Base, LS, LT, SL, SLE	4.8L 294 V8, 6.0L 364 V8
2014 - 2017	GMC	Savana 3500	Base, LS, LT	4.8L 294 V8, 6.0L 364 V8
2018 - 2019	GMC	Savana 3500	Base, LS, LT	6.0L 364 V8
2008	GMC	Sierra	Denali	6.2L 376 V8
2008 - 2009	GMC	Sierra 1500	Denali, SLE, SLT, WT	5.3L 325 V8, 6.2L 376 V8
2010 - 2013	GMC	Sierra 1500	Denali, Hybrid, SL, SLE, SLT, WT, XFE	4.8L 294 V8, 5.3L 325 V8, 6.0L 364 V8, 6.2L 376 V8
2010	GMC	Sierra 2500 HD	SLE, SLT, WT	6.0L 364 V8
2011 - 2014	GMC	Sierra 2500 HD	Denali, SLE, SLT, WT	6.0L 364 V8
2015 - 2019	GMC	Sierra 2500 HD	Base, Denali, SLE, SLT	6.0L 364 V8
2010	GMC	Sierra 3500 HD	SLE, SLT, WT	6.0L 364 V8
2011 - 2014	GMC	Sierra 3500 HD	Denali, SLE, SLT, WT	6.0L 364 V8
2015 - 2019	GMC	Sierra 3500 HD	Base, Denali, SLE, SLT	6.0L 364 V8
2008	GMC	Yukon	Denali	6.2L 376 V8
2009	GMC	Yukon	Denali, SLE, SLT	5.3L 325 V8, 6.2L 376 V8
2010	GMC	Yukon	Denali, Denali Hybrid, Hybrid, SLE, SLT	5.3L 325 V8, 6.0L 364 V8, 6.2L 376 V8
2011 - 2013	GMC	Yukon	Denali, Denali Hybrid, Hybrid	6.0L 364 V8, 6.2L 376 V8
2014	GMC	Yukon	Denali	6.2L 376 V8
2008 - 2014	GMC	Yukon XL 1500	Denali, SLE, SLT	5.3L 325 V8, 6.2L 376 V8
2010 - 2013	GMC	Yukon XL 2500	SLE, SLT	6.0L 364 V8
2008 - 2009	Hummer	H2	Adventure, Base, Luxury	6.2L 376 V8
2010	Hummer	H3	Alpha	5.3L 325 V8
2010	Hummer	H3T	Alpha	5.3L 325 V8
