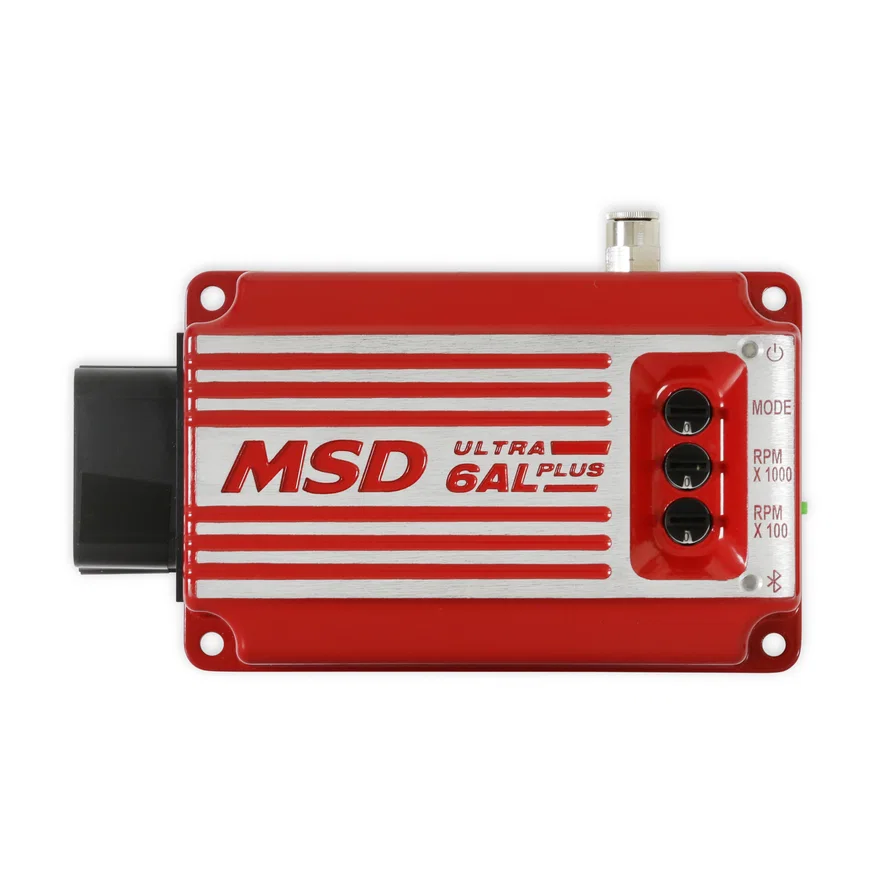

MSD Ultra 6AL Plus Ignition Control - Red

Mfg Part #

6523

NP#

MSD6523

Brand

Universal fit: no vehicle restriction.

• Fully protected against an open coil, shorted coil & open load
• Mobile app available settings: Step retard value, Launch RPM value, Burnout RPM value, Max (Race) RPM Value
• Program through the “MSD Ultra 6AL” app or MSDView software via the integrated USB port
• 12-15 Volts, 7 Volt Start
• Alerts and monitors available
• Easily installs on 4, 6, 8-cylinder engines with distributors
• Operates on most 7 to 28 volt electrical systems
• Maximum programmable retard of 35 degree
• High conversion efficiency ensures minimal heat generation and maximum spark energy output with less current draw from the battery. - (Highly efficient Ignition, minimum heat and max spark energy with less current draw)
• 0.8 Amps per 1,000 RPM
• MSD CAN communication for easy connectivity to MSDView using a CAN MSD Hub and Power Grid USB or CAN-USB Bridge 89982 product
• Capable to program cylinder selection and start retard without a computer or app for old school racers (like 6425 or 6428 box)
• Consistently high spark energy of 135mJ to 150mJ for every firing, from idle to redline RPM
• Increase spark series duration lasts for 18 of crankshaft rotation
• Tach Output
• Quickens throttle response & improves starting
• Boost dependent timing control up to 400 kPA (58 PSI / 4 BAR internal sensor) - the ultimate ignition box for moderately boosted vehicles utilizing a blow-through or draw-through carburetor
• High RPM operation and maximum output using the Blaster HVC, PN 8252 or HVC II, PN 8253
• Powerful capacitive discharge of multiple sparks improves performance
• High level of security connection from phone to Ignition box (encryption) including sequence in push button implementation
• Programmable Start Retard through rotary switches: 0, 10, 20 degrees
• 15,000 RPM with 14.4 Volts
• Programmable Launch Timing (Seconds vs degrees after launch wire activation)
• Launch, Burnout, and Step Retard activation inputs available. This ignition box has a built-in tri step RPM rev limit
• Programmable timing curves in 2D Plots or 3D tables (RPM vs Timing vs MAP Pressure) - You can plot the 3D graph and edit a table 20x20 either from Mobile app (Phone) or from MSDView (laptop)
• Connects to points, magnetic pickups, and Hall/Crank Input distributors on 4,6, and 8-cylinder engines
• Programmable Step Retard: On Ramp time, Off Delay, Off Ramp Time, Engine RPM for activation
