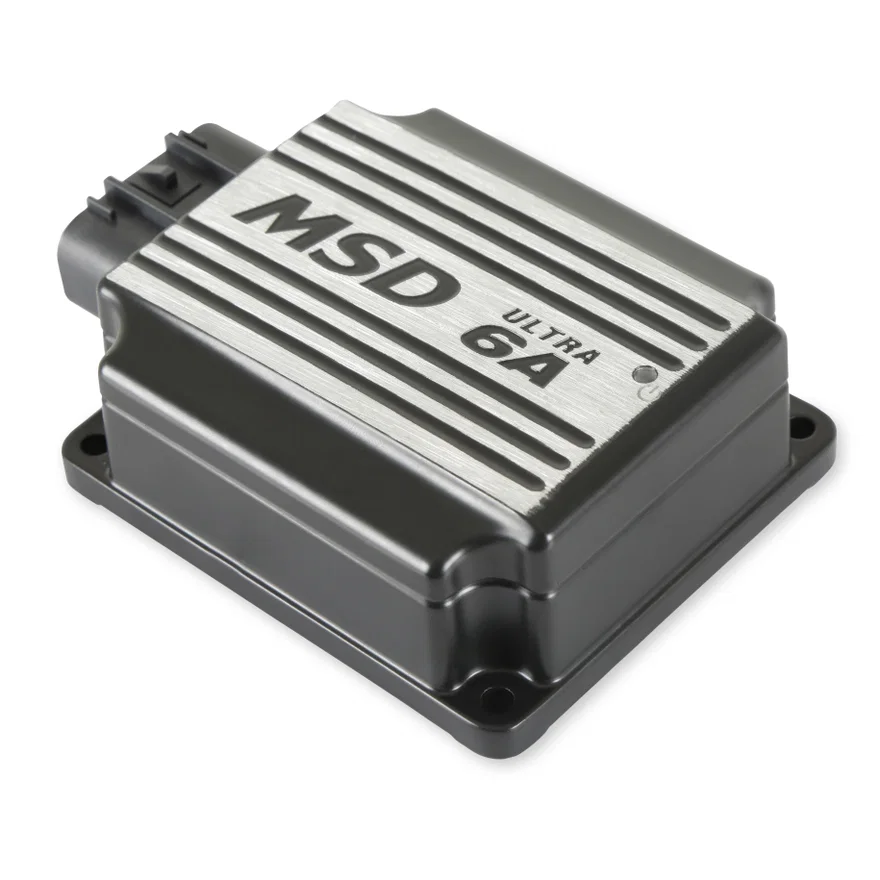

MSD Ultra 6A Ignition Control - Black

Mfg Part #

62023

NP#

MSD62023

Brand

Universal fit: no vehicle restriction.

• 15,000 RPM with 14.4 Volts
• Quickens throttle response & improves starting
• Compact design - full MSD power
• 12-15 Volts, 7 Volt Start
• Easily installs on 4, 6, 8-cylinder engines with distributors
• New processor and board design provide a highly efficient ignition, minimal heat and max spark energy with less current draw
• High rpm operation and maximum output using the Blaster HVC, PN 8252 or HVC II, PN 8253
• 1.1 Amp per 1,000 RPM
• Fully protected against an open coil, shorted coil & open load
• Tach Output to drive an external Tachometer
• Powerful capacitive discharge of multiple sparks improves performance, and ensure complete combustion
• Plug and Play upgrade to current installations with a 6201, MSD 6A
• Operates on most 7 to 28-volt electrical systems
• Connects to points and magnetic pickups
• 60% smaller and 50% lighter than the MSD Digital 6A (688 grams vs 344 grams)
• Consistently high spark energy of 135mJ to 150mJ for every firing, from idle to redline rpm
