Which vehicles does the Edelbrock 5814 fit?

Fits 1987 to 1995 Chevrolet Astro, C1500, C2500 and 15 more models, and 3 more makes. Street; Non-Rotator; Seat Press. 110 lbs.; Installed Height 1.700in.; Open Press. 200 lbs. at 0.475in.; OD 1.222in.; ID 0.8750in.; Coil Bind 1.150in.; For Use w/Cast Iron OE Cyl. Heads

How much is shipping and when does it ship?

Ground shipping in Canada is free on orders of $100 and up, $9.99 under that.

Can Northern Performance install it?

Yes. Buy it online and have us install it at our Service Centre. The Service Centre is at 1164 Walkers Line, Burlington, Ontario.

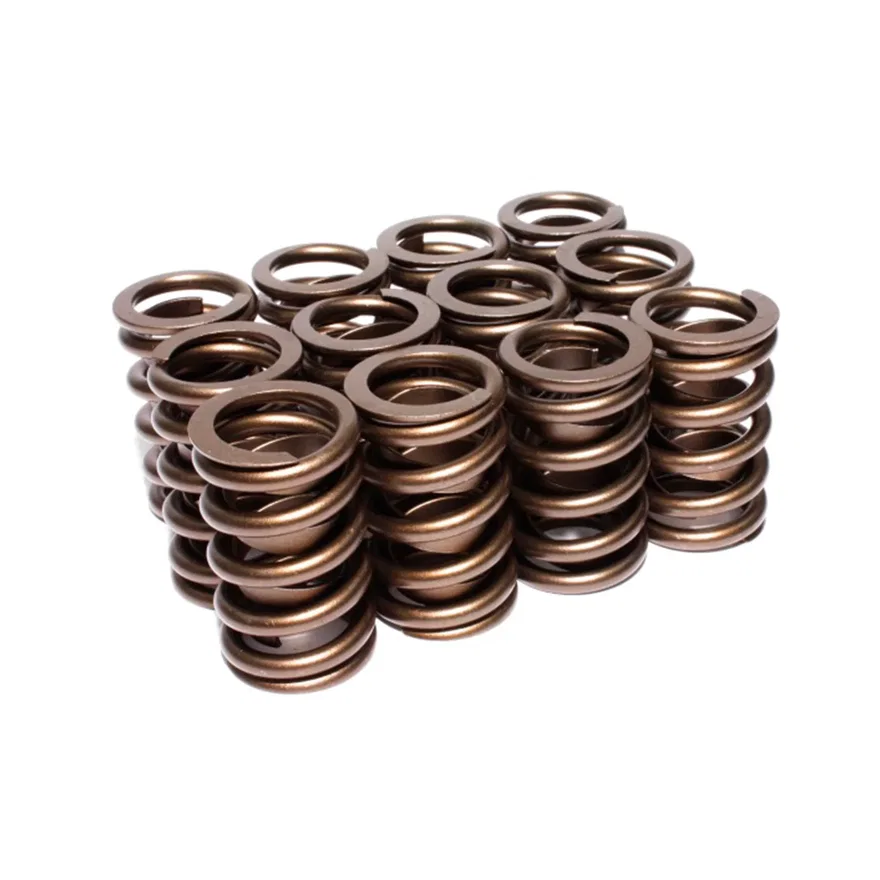

Edelbrock Sure Seat Valve Springs for Chevy 4.3L 90? V6 1987-95

Mfg Part #: 5814
NP#: EDE5814
Brand
Fitment Note: Street; Non-Rotator; Seat Press. 110 lbs.; Installed Height 1.700in.; Open Press. 200 lbs. at 0.475in.; OD 1.222in.; ID 0.8750in.; Coil Bind 1.150in.; For Use w/Cast Iron OE Cyl. Heads

Fits 1987 to 1995 Chevrolet Astro, C1500, C2500 and 15 more models, and 3 more makes. See every vehicle

$92.99 CAD

Availability:

Book installation at our Service Centre

Does this fit your vehicle?

Description

The Edelbrock #5814 Sure Seat Valve Spring for Chevy 4.3L 90 Deg V6 1987-95 O.E Cast iron cylinder heads are made of highest quality spring wire and precision wound to close tolerances, our Sure Seat Valve Spring sets are for use on original equipment heads when installing Edelbrock Performer-Plus camshafts. These are the same high-performance springs used on Edelbrock Performer and RPM cylinder heads. For camshaft warranty compliance, use only the springs recommended by Edelbrock for each camshaft application.

Camshaft Type	Hydraulic Flat Tappet
Coil Bind Height	1.160 in
Damper Spring Included	Yes
Inside Diameter	0.750 in
Installed Height	1.700 in
Installed Pressure	110
Material	Chromium Silicon
Open Pressure	285 lbs/ft
Outside Diameter	1.250 in
Quantity	Set of 12
Spring Open Height	0.490 in
Spring Type	Cylindrical
Springs Per Valve	Single
Brand	Edelbrock
Mfg part #	5814

Fits these vehicles

Year	Make	Model	Engine
1987 - 1991	Chevrolet	Astro	4.3L 262 V6
1992 - 1994	Chevrolet	Astro
1988 - 1995	Chevrolet	C1500	4.3L 262 V6
1988 - 1995	Chevrolet	C2500	4.3L 262 V6
1987 - 1990	Chevrolet	Caprice	4.3L 262 V6
1992 - 1993	Chevrolet	Caprice	4.3L 262 V6
1992	Chevrolet	Commercial Chassis	4.3L 262 V6
1987	Chevrolet	El Camino	4.3L 262 V6
1987 - 1995	Chevrolet	G10	4.3L 262 V6
1987 - 1995	Chevrolet	G20	4.3L 262 V6
1987 - 1995	Chevrolet	G30	4.3L 262 V6
1988 - 1995	Chevrolet	K1500	4.3L 262 V6
1988 - 1995	Chevrolet	K2500	4.3L 262 V6
1987 - 1988	Chevrolet	Monte Carlo	4.3L 262 V6
1990 - 1995	Chevrolet	P30	4.3L 262 V6
1987	Chevrolet	R10	4.3L 262 V6
1987 - 1988	Chevrolet	R20	4.3L 262 V6
1988 - 1995	Chevrolet	S10	4.3L 262 V6
1988 - 1991	Chevrolet	S10 Blazer	4.3L 262 V6
1992 - 1994	Chevrolet	S10 Blazer
1987	Chevrolet	V10	4.3L 262 V6
1988 - 1995	GMC	C1500	4.3L 262 V6
1988 - 1995	GMC	C2500	4.3L 262 V6
1987	GMC	Caballero	4.3L 262 V6
1987 - 1995	GMC	G1500	4.3L 262 V6
1987 - 1995	GMC	G2500	4.3L 262 V6
1987 - 1995	GMC	G3500	4.3L 262 V6
1992 - 1994	GMC	Jimmy
1988 - 1995	GMC	K1500	4.3L 262 V6
1988 - 1995	GMC	K2500	4.3L 262 V6
1990 - 1995	GMC	P3500	4.3L 262 V6
1987	GMC	R1500	4.3L 262 V6
1987	GMC	R2500	4.3L 262 V6
1988 - 1990	GMC	S15	4.3L 262 V6
1988 - 1991	GMC	S15 Jimmy	4.3L 262 V6
1987 - 1991	GMC	Safari	4.3L 262 V6
1992 - 1994	GMC	Safari
1991 - 1995	GMC	Sonoma	4.3L 262 V6
1991	GMC	Syclone	4.3L 262 V6
1992 - 1993	GMC	Typhoon	4.3L 262 V6
1987	GMC	V1500	4.3L 262 V6
1991	Oldsmobile	Bravada	4.3L 262 V6
1992	Oldsmobile	Bravada
1987	Pontiac	Grand Prix	4.3L 262 V6
