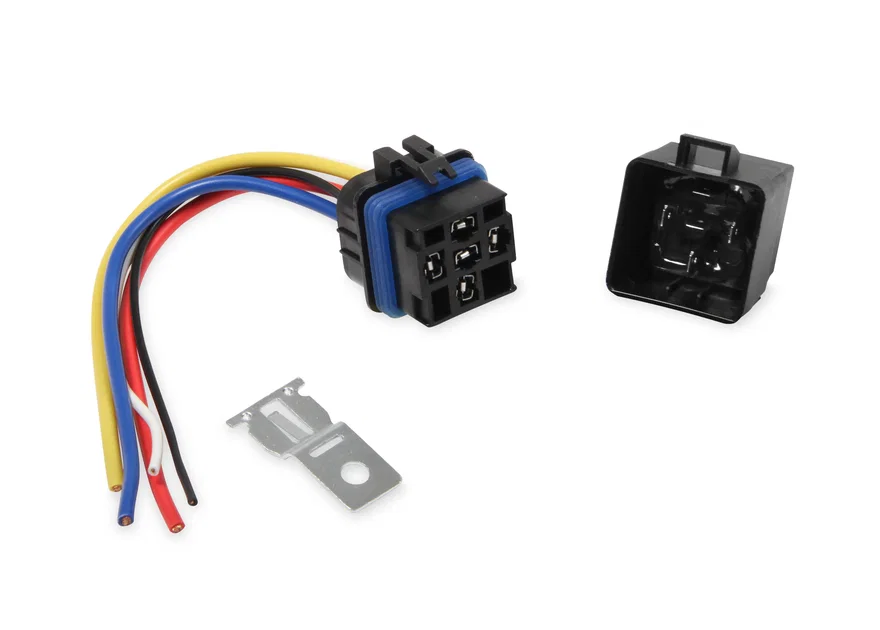

SPST Relay w/Socket Harness

MSD SPST Relay w/Socket Harness

Mfg Part #
89611
NP#
MSD89611
Brand
MSD

Universal fit: no vehicle restriction.

  • 40/30Amp – 30 AMP continuous load & 40 AMP momentary
  • 12-Volts DC
  • Ideal for use in: marine, dirt track cars, and off-road trucks & Jeeps
  • Metal mounting bracket – can be mounted under-hood or just about any other location on vehicle
  • Wire Gauge: (3) 12 gauge wires on blue (30 common), yellow (87 normally open), red (87a normally closed) – (2) 18 gauge wires on black (85 ground) & white (86 +12V)
  • Pigtail wires are 7” long
  • Works in normally open or normally closed circuits
  • Waterproof relay w/ pigtail harness & sealed connector
$60.99 CAD Ships Tuesday, September 29
Availability: This item is available at a partner warehouse.
Ships Tuesday, September 29
Universal Fitment
Book installation at our Service Centre

Does this fit your vehicle?

Description

MSD's waterproof relay are ideal for use on electric fuel pumps, water pumps, cooling fans, off-road lights, and any other application that is exposed to muddy or wet conditions. This relay handles 40 amps momentary and 30 amps for continuous use. The pigtail harness has 7" long leads w/ heavy duty 12 & 18 gauge wire. The connector has the wires molded in rubber and a gasket for a leak proof seal. Ideal for use on marine applications and vehicles that are power-washed out (Jeeps, 4x4 Trucks, UTV's, and dirt track race cars).

Warranty: Manufacturer's Limited 1 Year Warranty
