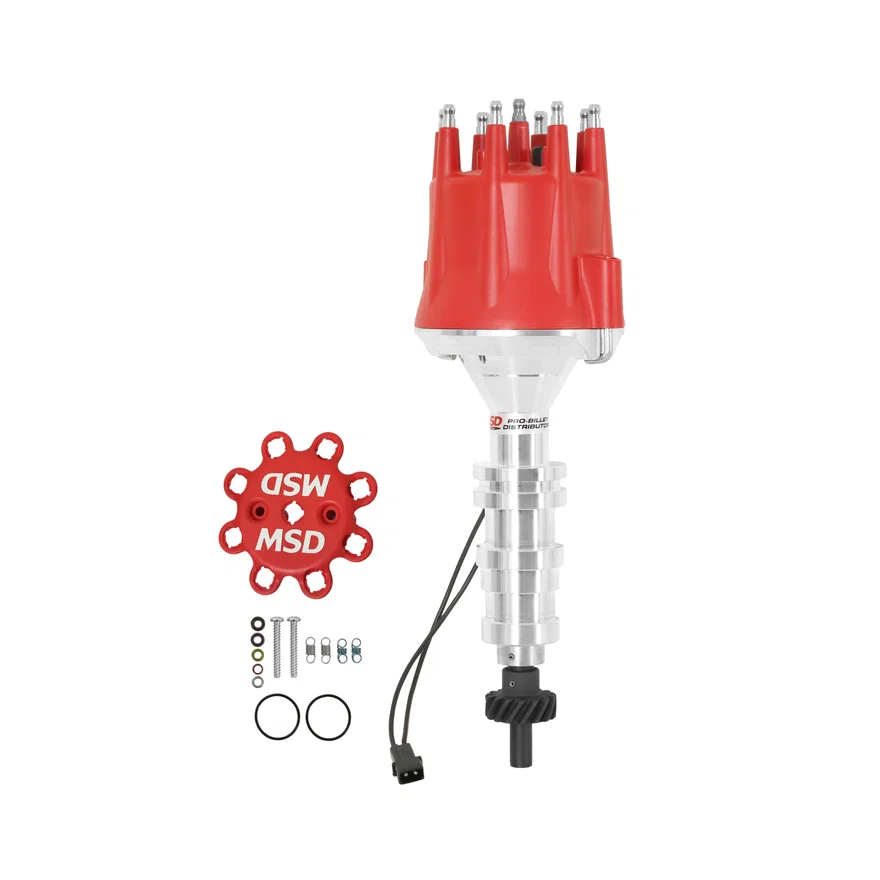

Ford FE Pro-Billet Distributor

MSD Ford FE Pro-Billet Distributor

Mfg Part #
8594
NP#
MSD8594
Brand
MSD

Fits 1957 to 1976 Ford 300, Club, Country Sedan and 24 more models, and 1 more make. See every vehicle

  • Mechanical advance assembly can be locked out for crank trigger systems
  • Advance weight pins are staked and tig welded to the plate
  • Nylon pads ensure smooth operation of the advance weights
  • Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
  • CNC machined billet aluminum housing and billet aluminum base
  • Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
  • Easy-to-adjust mechanical advance with supplied springs and stop bushings
  • Will not accept a vacuum advance or MSD Cap-A-Dapt
  • Supplied with an HEI style distributor cap and rotor
  • Polished steel shaft is QPQ coated and guided by a sealed ball bearing
  • Must be used with an MSD Ignition Control
  • No CARB Exemption Order Number
$832.99 CAD Free shipping in Canada, ships Wednesday, September 30
Free shipping in Canada, ships Wednesday, September 30Free shipping in Canada
Availability: This item is available at a partner warehouse.
Book installation at our Service Centre

Does this fit your vehicle?

Description

A magnetic pick-up triggers your MSD Ignition Control accurately at any rpm. Above this pick-up the mechanical advance assembly is positioned so it can be adjusted without disassembling the distributor. In addition, the specially ground advance cam is tig-welded to the 9/16" hardened shaft and the weight pins are staked and TIG-welded to the advance plate.

Warranty: Manufacturer's Limited 1 Year Warranty

Fits these vehicles

YearMakeModelSubmodelEngine
1963Ford300Base5.8L 352 V8, 6.4L 390 V8, 7.0L 427 V8
1958 - 1959FordClubBase5.4L 332 V8, 5.8L 352 V8
1958 - 1959FordCountry SedanBase5.4L 332 V8, 5.8L 352 V8
1960FordCountry SedanBase5.8L 352 V8
1961 - 1962FordCountry SedanBase5.8L 352 V8, 6.4L 390 V8
1963 - 1965FordCountry SedanBase5.8L 352 V8, 6.4L 390 V8, 7.0L 427 V8
1966 - 1967FordCountry SedanBase5.8L 352 V8, 6.4L 390 V8, 7.0L 427 V8, 7.0L 428 V8
1968FordCountry SedanBase6.4L 390 V8, 7.0L 427 V8, 7.0L 428 V8
1969 - 1970FordCountry SedanBase6.4L 390 V8, 7.0L 428 V8
1971FordCountry SedanBase6.4L 390 V8
1958 - 1959FordCountry SquireBase5.4L 332 V8, 5.8L 352 V8
1960FordCountry SquireBase5.8L 352 V8
1961 - 1962FordCountry SquireBase5.8L 352 V8, 6.4L 390 V8
1963 - 1965FordCountry SquireBase5.8L 352 V8, 6.4L 390 V8, 7.0L 427 V8
1966 - 1967FordCountry SquireBase5.8L 352 V8, 6.4L 390 V8, 7.0L 427 V8, 7.0L 428 V8
1968FordCountry SquireBase6.4L 390 V8, 7.0L 427 V8, 7.0L 428 V8
1969 - 1970FordCountry SquireBase6.4L 390 V8, 7.0L 428 V8
1971FordCountry SquireBase6.4L 390 V8
1957 - 1960FordCourier Sedan DeliveryBase5.8L 352 V8
1964 - 1965FordCustomBase5.8L 352 V8, 6.4L 390 V8, 7.0L 427 V8
1966 - 1967FordCustomBase5.8L 352 V8, 6.4L 390 V8, 7.0L 427 V8, 7.0L 428 V8
1968FordCustomBase6.4L 390 V8, 7.0L 427 V8, 7.0L 428 V8
1969 - 1970FordCustomBase6.4L 390 V8, 7.0L 428 V8
1971FordCustomBase6.4L 390 V8
1958 - 1959FordCustom 300Base5.4L 332 V8, 5.8L 352 V8
1960FordCustom 300Base5.8L 352 V8
1964FordCustom 500Base5.8L 352 V8, 6.4L 390 V8
1965FordCustom 500Base5.8L 352 V8, 7.0L 427 V8
1966FordCustom 500Base5.8L 352 V8, 6.4L 390 V8, 7.0L 427 V8, 7.0L 428 V8
1967FordCustom 500Base6.4L 390 V8, 7.0L 427 V8
1968FordCustom 500Base6.4L 390 V8, 7.0L 427 V8, 7.0L 428 V8
1969 - 1970FordCustom 500Base6.4L 390 V8, 7.0L 428 V8
1971FordCustom 500Base6.4L 390 V8
1958FordDel Rio WagonBase5.4L 332 V8, 5.8L 352 V8
1957 - 1959FordF-100Base5.8L 352 V8
1960 - 1963FordF-100Base5.4L 332 V8
1965 - 1967FordF-100Base5.8L 352 V8
1968 - 1974FordF-100Base5.9L 360 V8, 6.4L 390 V8
1975FordF-100Custom, Northland, Ranger, Ranger XLT5.9L 360 V8, 6.4L 390 V8
1976FordF-100Base, Custom, Northland, Ranger, Ranger XLT5.9L 360 V8, 6.4L 390 V8
1975FordF-150Custom, Northland, Ranger, Ranger XLT5.9L 360 V8, 6.4L 390 V8
1976FordF-150Base, Custom, Northland, Ranger, Ranger XLT5.9L 360 V8, 6.4L 390 V8
1957 - 1959FordF-250Base5.8L 352 V8
1960 - 1963FordF-250Base5.4L 332 V8
1965 - 1967FordF-250Base5.8L 352 V8
1968 - 1974FordF-250Base5.9L 360 V8, 6.4L 390 V8
1975FordF-250Custom, Northland, Ranger, Ranger XLT5.9L 360 V8, 6.4L 390 V8
1976FordF-250Base, Custom, Northland, Ranger, Ranger XLT5.9L 360 V8, 6.4L 390 V8
1957 - 1959FordF-350Base5.8L 352 V8
1960 - 1963FordF-350Base5.4L 332 V8
1964FordF-350Base5.9L 360 V8
1965 - 1966FordF-350Base5.8L 352 V8, 5.9L 360 V8
1967FordF-350Base5.8L 352 V8
1968 - 1974FordF-350Base5.9L 360 V8, 6.4L 390 V8
1975FordF-350Custom, Northland, Ranger, Ranger XLT5.9L 360 V8, 6.4L 390 V8
1976FordF-350Base, Custom, Northland, Ranger, Ranger XLT5.9L 360 V8, 6.4L 390 V8
1958 - 1959FordFairlane500, Base5.4L 332 V8, 5.8L 352 V8
1960FordFairlane500, Base5.8L 352 V8
1961 - 1963FordFairlane500, Base5.8L 352 V8, 6.4L 390 V8
1964 - 1965FordFairlane500, Base5.8L 352 V8, 6.4L 390 V8, 7.0L 427 V8
1966FordFairlane500, 500XL, Base5.8L 352 V8, 6.4L 390 V8, 7.0L 427 V8
1967FordFairlane500, 500XL, Base6.4L 390 V8, 7.0L 427 V8
1968 - 1969FordFairlane500, Base6.4L 390 V8, 7.0L 427 V8, 7.0L 428 V8
1970FordFairlane5006.4L 390 V8, 7.0L 428 V8
1959FordGalaxieBase5.4L 332 V8, 5.8L 352 V8
1960FordGalaxieBase, Special5.8L 352 V8
1961FordGalaxieBase, Club Victoria, Starliner, Sunliner, Town Victoria5.8L 352 V8, 6.4L 390 V8
1962FordGalaxieBase5.8L 352 V8, 6.4L 390 V8
1963 - 1965FordGalaxieBase5.8L 352 V8, 6.4L 390 V8, 7.0L 427 V8
1966 - 1967FordGalaxieBase5.8L 352 V8, 6.4L 390 V8, 7.0L 427 V8, 7.0L 428 V8
1962FordGalaxie 500Base, Sunliner, Victoria, XL5.8L 352 V8, 6.4L 390 V8, 6.7L 406 V8
1963FordGalaxie 500Base, Sunliner, Victoria, XL5.8L 352 V8, 6.4L 390 V8, 6.7L 406 V8, 7.0L 427 V8
1964FordGalaxie 500Base, Sunliner, Victoria, XL5.8L 352 V8, 6.4L 390 V8, 7.0L 427 V8
1965 - 1966FordGalaxie 500Base, XL5.8L 352 V8, 6.4L 390 V8, 7.0L 427 V8
1967FordGalaxie 500Base, XL6.4L 390 V8, 7.0L 427 V8
1968FordGalaxie 500Base, XL6.4L 390 V8, 7.0L 427 V8, 7.0L 428 V8
1969 - 1970FordGalaxie 500Base, XL6.4L 390 V8, 7.0L 428 V8
1971FordGalaxie 500Base6.4L 390 V8
1964 - 1965FordGT40Base7.0L 427 V8
1966 - 1967FordGT40MK III7.0L 427 V8
1968FordGT40Base7.0L 427 V8
1969FordGT40MK III7.0L 427 V8
1965 - 1967FordLTDBase5.8L 352 V8, 6.4L 390 V8, 7.0L 427 V8, 7.0L 428 V8
1968FordLTDBase6.4L 390 V8, 7.0L 427 V8, 7.0L 428 V8
1969FordLTDBase6.4L 390 V8, 7.0L 428 V8
1970FordLTDBase, Brougham6.4L 390 V8, 7.0L 428 V8
1971FordLTDBase, Brougham6.4L 390 V8
1967FordMustangBase, Shelby GT-5006.4L 390 V8, 7.0L 428 V8
1968FordMustangBase, Shelby GT-500, Shelby GT-500KR6.4L 390 V8, 7.0L 427 V8, 7.0L 428 V8
1969FordMustangBase, Shelby GT-5006.4L 390 V8, 7.0L 428 V8
1970FordMustangBase, Grande, Mach 1, Shelby GT-5007.0L 428 V8
1957 - 1958FordRancheroBase, Custom5.8L 352 V8
1959FordRancheroBase5.8L 352 V8
1966FordRancheroBase5.8L 352 V8
1967FordRanchero500, 500 XL, Base5.8L 352 V8, 6.4L 390 V8
1968 - 1969FordRanchero500, Base, GT6.4L 390 V8, 7.0L 428 V8
1958 - 1959FordRanch WagonBase5.4L 332 V8, 5.8L 352 V8
1960FordRanch WagonBase5.8L 352 V8
1961 - 1962FordRanch WagonBase5.8L 352 V8, 6.4L 390 V8
1963 - 1965FordRanch WagonBase5.8L 352 V8, 6.4L 390 V8, 7.0L 427 V8
1966 - 1967FordRanch WagonBase5.8L 352 V8, 6.4L 390 V8, 7.0L 427 V8, 7.0L 428 V8
1968FordRanch WagonBase6.4L 390 V8, 7.0L 427 V8, 7.0L 428 V8
1969FordRanch WagonBase6.4L 390 V8, 7.0L 428 V8
1970FordRanch WagonBase, Police Cruiser6.4L 390 V8, 7.0L 428 V8
1971FordRanch WagonBase6.4L 390 V8
1958 - 1959FordSkylinerBase5.4L 332 V8, 5.8L 352 V8
1960FordStarlinerBase5.8L 352 V8
1958 - 1959FordSunlinerBase5.4L 332 V8, 5.8L 352 V8
1960FordSunlinerBase5.8L 352 V8
1958 - 1959FordThunderbirdBase5.4L 332 V8, 5.8L 352 V8
1960FordThunderbirdBase5.8L 352 V8
1961 - 1962FordThunderbirdBase6.4L 390 V8
1963FordThunderbirdBase6.4L 390 V8, 6.7L 410 V8, 7.0L 427 V8
1964 - 1965FordThunderbirdBase6.4L 390 V8, 7.0L 427 V8
1966 - 1967FordThunderbirdBase6.4L 390 V8, 7.0L 427 V8, 7.0L 428 V8
1968FordThunderbirdBase6.4L 390 V8
1969FordThunderbirdBase7.0L 428 V8
1968FordTorinoBase, GT6.4L 390 V8, 7.0L 427 V8, 7.0L 428 V8
1969FordTorinoBase, Cobra, GT, Squire6.4L 390 V8, 7.0L 428 V8
1970FordTorinoBase, Brougham, GT, Squire, Super Cobra Jet6.4L 390 V8, 7.0L 428 V8
1958 - 1959FordVictoriaBase5.4L 332 V8, 5.8L 352 V8
1960FordVictoriaBase5.8L 352 V8
1967MercuryBroughamBase6.4L 390 V8, 6.7L 410 V8, 7.0L 427 V8, 7.0L 428 V8
1964 - 1965MercuryCalienteBase7.0L 427 V8
1966 - 1967MercuryCalienteBase6.4L 390 V8, 7.0L 427 V8
1966 - 1967MercuryCapriBase6.4L 390 V8, 7.0L 427 V8
1961 - 1962MercuryColony ParkBase5.8L 352 V8, 6.4L 390 V8
1963 - 1965MercuryColony ParkBase6.4L 390 V8, 7.0L 427 V8
1966 - 1967MercuryColony ParkBase6.4L 390 V8, 6.7L 410 V8, 7.0L 427 V8, 7.0L 428 V8
1968 - 1970MercuryColony ParkBase6.4L 390 V8, 7.0L 428 V8
1971MercuryColony ParkBase6.4L 390 V8
1964 - 1965MercuryComet202, Base7.0L 427 V8
1966 - 1967MercuryCometBase6.4L 390 V8, 7.0L 427 V8
1968 - 1969MercuryCometBase6.4L 390 V8, 7.0L 427 V8, 7.0L 428 V8
1961 - 1962MercuryCommuterBase5.8L 352 V8, 6.4L 390 V8
1963 - 1965MercuryCommuterBase6.4L 390 V8, 7.0L 427 V8
1966 - 1967MercuryCommuterBase6.4L 390 V8, 6.7L 410 V8, 7.0L 427 V8, 7.0L 428 V8
1968MercuryCommuterBase6.4L 390 V8, 7.0L 428 V8
1967MercuryCougarBase, XR-76.4L 390 V8
1968MercuryCougarBase, XR-76.4L 390 V8, 7.0L 427 V8, 7.0L 428 V8
1969 - 1970MercuryCougarBase, Cobra Jet, XR-76.4L 390 V8, 7.0L 428 V8
1963MercuryCountry CruiserBase6.4L 390 V8
1964 - 1965MercuryCycloneBase7.0L 427 V8
1966 - 1967MercuryCycloneBase6.4L 390 V8, 7.0L 427 V8
1968MercuryCycloneBase6.4L 390 V8, 7.0L 427 V8, 7.0L 428 V8
1969MercuryCycloneBase, CJ, Spoiler6.4L 390 V8, 7.0L 427 V8, 7.0L 428 V8
1970MercuryCycloneBase, GT, Spoiler6.4L 390 V8
1963 - 1965MercuryMarauderBase6.4L 390 V8, 7.0L 427 V8
1966MercuryMarauderBase6.4L 390 V8, 6.7L 410 V8, 7.0L 427 V8, 7.0L 428 V8
1969 - 1970MercuryMarauderBase, X-1006.4L 390 V8, 7.0L 428 V8
1967MercuryMarquisBase6.4L 390 V8, 6.7L 410 V8, 7.0L 427 V8, 7.0L 428 V8
1968 - 1969MercuryMarquisBase6.4L 390 V8, 7.0L 428 V8
1970MercuryMarquisBase, Brougham6.4L 390 V8, 7.0L 428 V8
1961 - 1962MercuryMeteorBase5.8L 352 V8, 6.4L 390 V8
1963MercuryMeteorBase6.4L 390 V8
1964 - 1965MercuryMontclairBase6.4L 390 V8, 7.0L 427 V8
1966 - 1967MercuryMontclairBase6.4L 390 V8, 6.7L 410 V8, 7.0L 427 V8, 7.0L 428 V8
1968MercuryMontclairBase6.4L 390 V8, 7.0L 428 V8
1968 - 1969MercuryMontegoBase, MX6.4L 390 V8, 7.0L 427 V8, 7.0L 428 V8
1961MercuryMontereyBase5.8L 352 V8, 6.4L 390 V8
1962MercuryMontereyBase, Custom S-555.8L 352 V8, 6.4L 390 V8
1963MercuryMontereyBase, Custom, S-556.4L 390 V8, 7.0L 427 V8
1964 - 1965MercuryMontereyBase6.4L 390 V8, 7.0L 427 V8
1966 - 1967MercuryMontereyBase, S-556.4L 390 V8, 6.7L 410 V8, 7.0L 427 V8, 7.0L 428 V8
1968MercuryMontereyBase6.4L 390 V8, 7.0L 428 V8
1969 - 1970MercuryMontereyBase, Custom6.4L 390 V8, 7.0L 428 V8
1964 - 1965MercuryPark LaneBase6.4L 390 V8, 7.0L 427 V8
1966 - 1967MercuryPark LaneBase6.4L 390 V8, 6.7L 410 V8, 7.0L 427 V8, 7.0L 428 V8
1968MercuryPark LaneBase6.4L 390 V8, 7.0L 428 V8
1964 - 1965MercuryVillagerBase7.0L 427 V8
1966 - 1967MercuryVillagerBase6.4L 390 V8, 7.0L 427 V8
1966 - 1967MercuryVoyagerBase6.4L 390 V8, 7.0L 427 V8
