Which vehicles does the Doug's Headers D356-B fit?

Fits 1955 to 1957 Chevrolet Bel Air, One-Fifty Series, Sedan Delivery and 1 more model. Fits most angle plug heads.; Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.; Will not fit if engine is located more than 3/4” forward for HEI firewall clearance. Fits with Trans Dapt PN 4195 or 4177, Danchuck PN 871, 12184, 17756, 17757, & 16339 or equivalent; Original bellhousing frame mounts must be removed.; Will not work with Column Shift manual trans.; Will fit with 605 power steering box.; Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.; Mid Length; Hi-Temp Black Coating

How much is shipping and when does it ship?

It ships Friday, October 2. Ground shipping in Canada is free on orders of $100 and up, $9.99 under that.

Can Northern Performance install it?

Yes. Buy it online and have us install it at our Service Centre. The Service Centre is at 1164 Walkers Line, Burlington, Ontario.

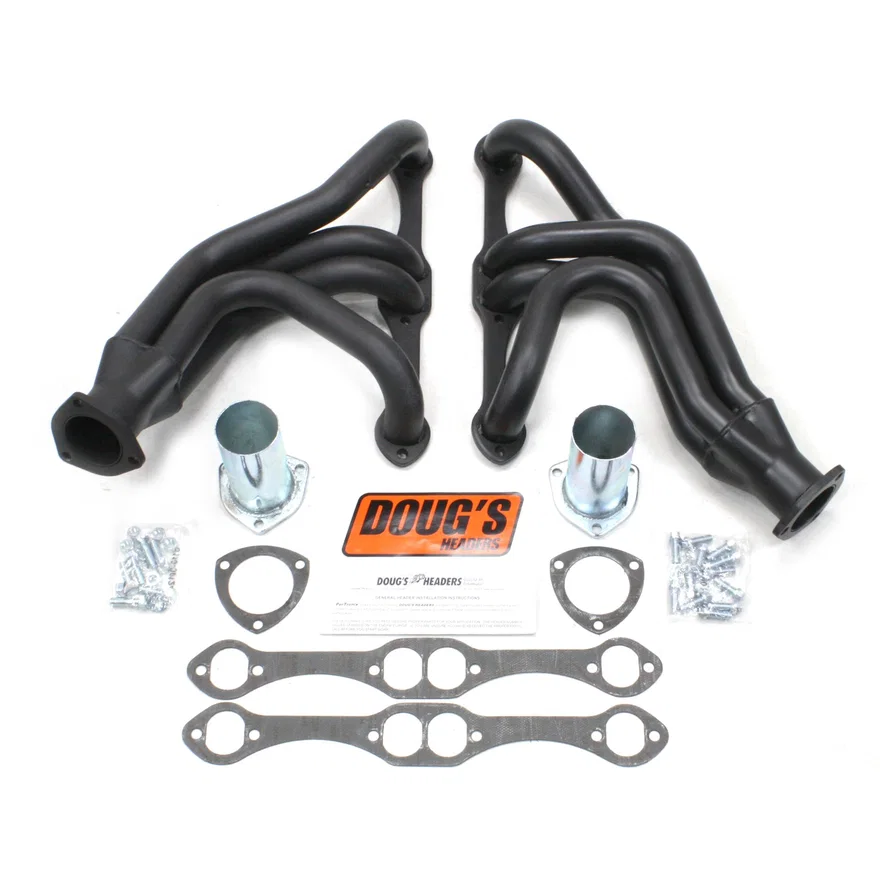

Doug's Headers Mid Length Header 55-57 Chevy 265-400 SBC 1 5/8" Primary 2 1/2" Collector Black Hi Temp Coated

Mfg Part #: D356-B
NP#: DOUD356-B
Brand
Fitment Note: Fits most angle plug heads.; Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 & ZZ6 engines.; Will not fit if engine is located more than 3/4” forward for HEI firewall clearance. Fits with Trans Dapt PN 4195 or 4177, Danchuck PN 871, 12184, 17756, 17757, & 16339 or equivalent; Original bellhousing frame mounts must be removed.; Will not work with Column Shift manual trans.; Will fit with 605 power steering box.; Header is designed to fit cars using original V-8 pitman arm part number 3719487 not 6 cylinder pitman arm number 3709877. Aftermarket pitman arms must be same configuration as OE for proper header fit.; Mid Length; Hi-Temp Black Coating

Fits 1955 to 1957 Chevrolet Bel Air, One-Fifty Series, Sedan Delivery and 1 more model. See every vehicle

3/8" Thick machined flanges to prevent warping
CNC mandrel bent tubes for ensuring accurate fit and optimal flow
Heavy duty 16-gauge tubing for long life
Tubes are pre-polished to removed scratches before applying metallic ceramic or hi-temp black coating

$1,079.99 CAD Free shipping in Canada, ships Friday, October 2

Free shipping in Canada, ships Friday, October 2Free shipping in Canada

Availability:

Book installation at our Service Centre

Does this fit your vehicle?

Description

Mid-Length Headers, often called Clipsters, are engineered to provide superior performance gains over Manifold Replacements or Block Hugger style headers. These headers enhance your vehicles's horsepower and torque while preserving ground clearance for cars with a lowered stance and trucks where long tube headers may hang to low.

Collector Attachment	3-Bolt Flange
Collector Diameter	2.5 in
Collector Port Diameter	2.5 in
Color	Black
Cylinder Head Port Shape	Oval
Design	Mid Length
EGT Port	No
EmissionFullDES	2 - This product is Legal for use on Pre-Pollution Controlled Vehicles. It is legal for use on all vehicles produced Before Emissions Control Regulations were imposed. These are considered Uncontrolled Vehicles and are defined as follows; 1965 and Older US Manufactured California Certified Vehicles, 1967 and Older US Manufactured Federally Certified Vehicles, 1967 and Older Foreign Manufactured Vehicles
Finish	Hi-Temp Black Coating
Flange Thickness	0.375 in
Gasket Or Seal Included	Yes
Gaskets Included	Yes
Grade Type	Performance
Header Material	Steel
Header Style	Mid Length
Material	Steel
Mounting Hardware Included	Yes
Oxygen Sensor Port	No
Port Shape	Oval
Primary Tube Outside Diameter	1.625 in
Primary Tubing Diameter	1.625 in
Sheen Level	Matte
Tube Wall Thickness	16 ga.
Brand	Doug's Headers
Mfg part #	D356-B

Fits these vehicles

Year	Make	Model	Engine
1955 - 1956	Chevrolet	Bel Air	4.3L 265 V8
1957	Chevrolet	Bel Air	4.3L 265 V8, 4.6L 283 V8
1955 - 1956	Chevrolet	One-Fifty Series	4.3L 265 V8
1957	Chevrolet	One-Fifty Series	4.3L 265 V8, 4.6L 283 V8
1955 - 1956	Chevrolet	Sedan Delivery	4.3L 265 V8
1957	Chevrolet	Sedan Delivery	4.3L 265 V8, 4.6L 283 V8
1955 - 1956	Chevrolet	Two-Ten Series	4.3L 265 V8
1957	Chevrolet	Two-Ten Series	4.3L 265 V8, 4.6L 283 V8
