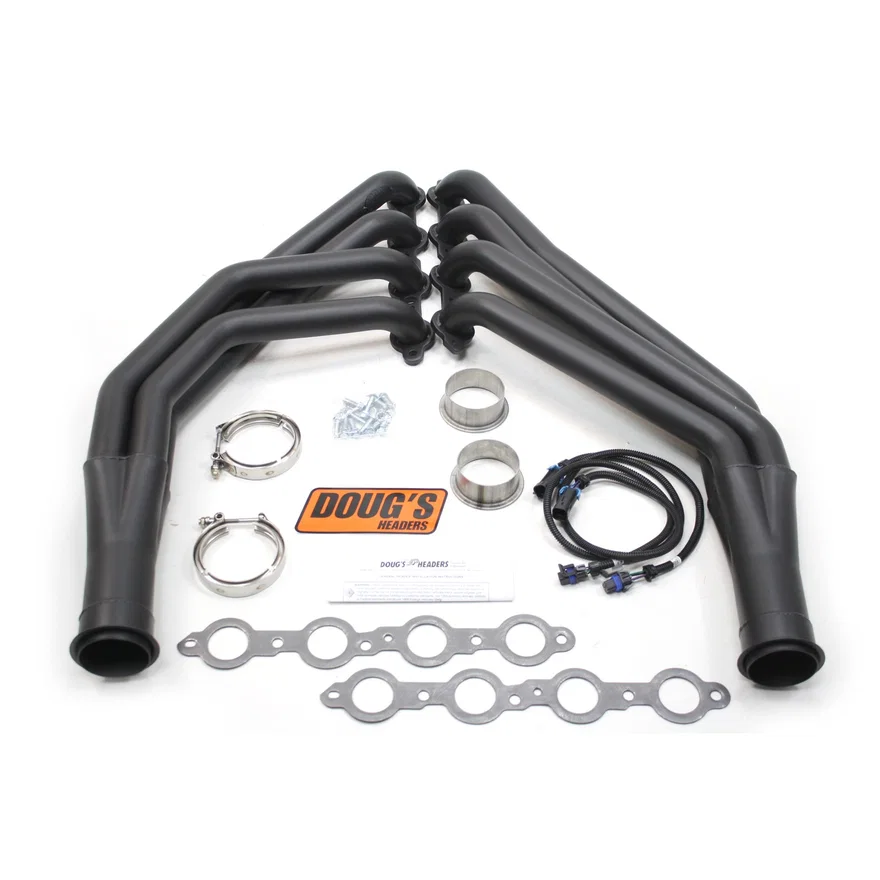

Doug's Headers Long Tube Header 73-87 C10 4.8-6.2L LS Engine Swap 2WD 1 7/8" Primary 3" Collector Black Hi Temp Coated

Mfg Part #

D314-B

NP#

DOUD314-B

Brand

Fitment Note

For use with Chevrolet LS Engine Swap; Check motor mount position before ordering.; O2 bungs are welded on both collectors.; Requires Doug's LS adapter kit part number SK-100.; LS1 style oil pan required for proper fit.; Includes O2 sensor extension harness.; Will not fit manual transmission cars with factory Z bar clutch linkage.; Uses 3" V band collectors with clamps provided.; This long tube header has excellent ground clearance with collector above the bottom of the frame rails.; Mid Length; Hi-Temp Black Coating

Fits 1973 to 1988 Chevrolet C10, C10 Pickup, C20 and 5 more models, and 1 more make. See every vehicle

• 3/8" Thick machined flanges to prevent warping
• Precision formed long transition collectors and long tube design reduces backpressure and increases higher RPM horsepower
• Heavy duty 16-gauge tubing for long life
• Tubes are pre-polished to removed scratches before applying metallic ceramic or hi-temp black coating
