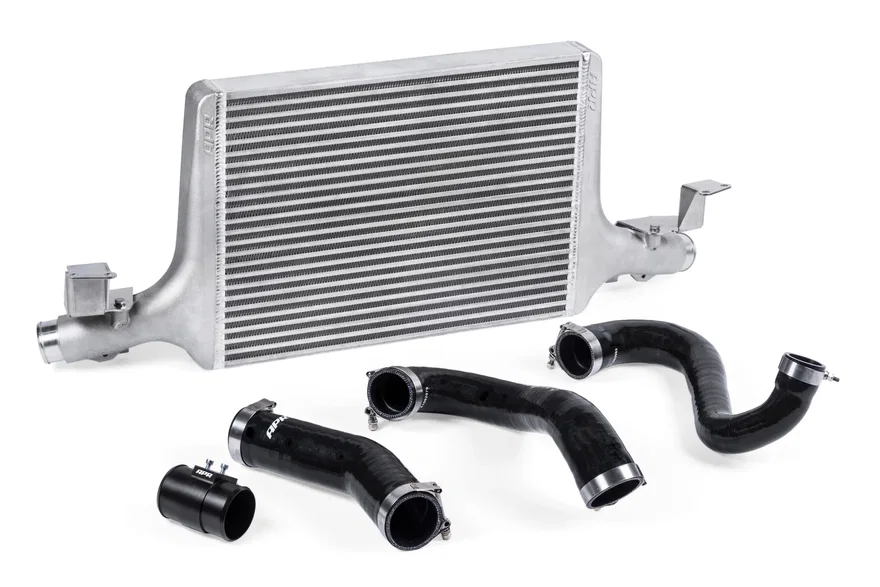

APR Intercooler System - B9 1.8/2.0 TFSI for Audi

Mfg Part #

IC100022

NP#

APRIC100022

Brand

Fits 2017 to 2020 Audi A4, A4 Quattro, A5 Quattro and 1 more model. See every vehicle

• Dramatically lowers intake air temp (IAT)
• Increases HP while minimizing power-robbing heat soak!
• Retained as high as 45 AWHP compared to the factory system!
• Massive frontal surface area and core volume
• 3.125" x 5.75" x 28.25" - 162.4 in² front. & 507.62 in³ volume - OEM
• 2.250" x 16.2" x 22.00" - 356.4 in² front. & 801.90 in³ volume - APR
• Highly effective core design
• Bar-and-plate core with staggered and louvered fins.
• Rigorous testing determined core style, fin density, and size.
• Low pressure drop + highly effective cooling = high performance!
• Smooth cast end tanks
• Engineered for low turbulence/restriction and maximum flow
• Organically shaped to promote airflow across entire core.
• Pressure tested to prevent power robbing boost leaks.
• Silicone inlet and outlet hoses
• Multi-ply silicone design with internal wire reinforcement, fluorosilicone internal protective layer and APR's EZ-Flow stepped design.
• Clampco T-bolt clamps
• Strong, stainless-steel Clampco T-Bolt clamps provide better clamping for increased protection against hose slippage and boost leaks.
• Billet MAP housing
• Precision CNC-machined for secured sensor placement with an attractive matte-black anodized finish.
• Easy to install
• Simple bolt-on install with no trimming or drilling necessary!
• Designed by engineers with lasers
• With the best equipment and smartest engineers, it just works!
