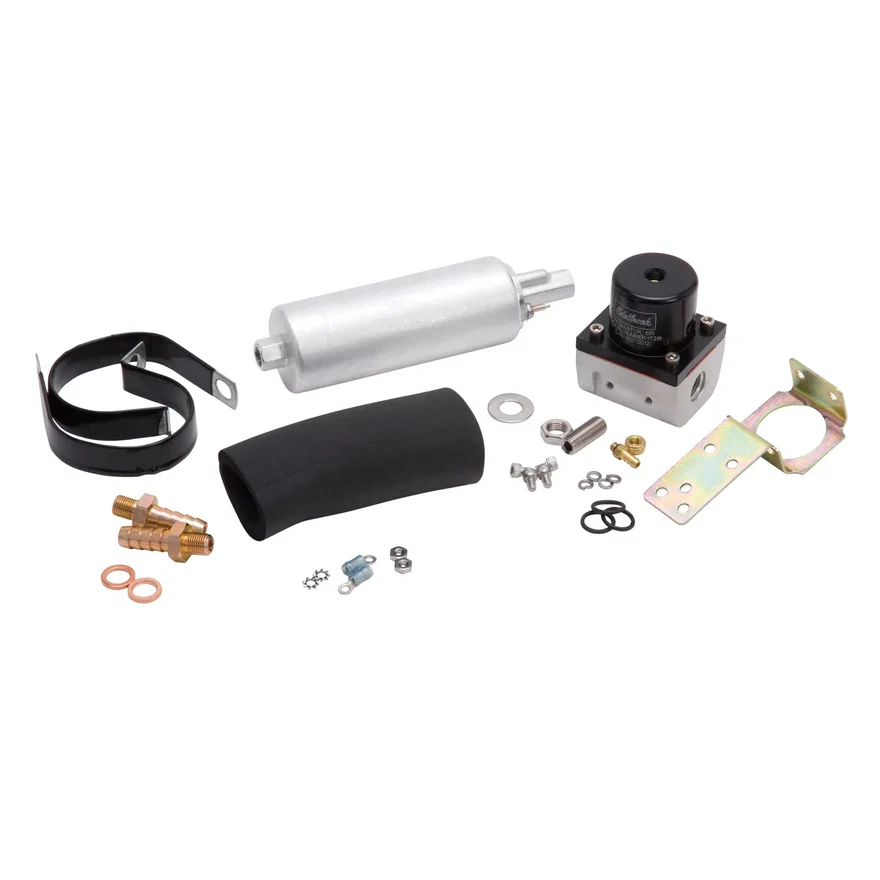

Edelbrock Inline Fuel Pump & Regulator Kit (Electric Fuel Pump #3594 & Regulator #1728)

Mfg Part #: 35943
NP#: EDE35943
Brand

Universal fit: no vehicle restriction.

$448.99 CAD

Free shipping in Canada

Availability:

Contact [email protected] to check before you order.

Universal Fitment

Book installation at our Service Centre

Does this fit your vehicle?

Description

Edelbrock part #35943 kit will include the in-line electric fuel pump #3594 which provides 67 GPH at 43.5 psi and the #1728 Fuel pressure regulator. The fuel pump will include mounting hardware and it will come with 3/8 barbed fittings. Russell fittings allow the customer to use -6 AN fitting (Russell part #670470) if desired. This kit will support up to 670 horsepower @ 43.5 psi.

Design	In-Line
End 1 Diameter	M10x1.0
End 1 Gender	Female
End 1 Type	Threaded
End 2 Gender	Female
End 2 Size	M10x1.0
End 2 Type	Threaded
Fitting Size	3/8 in
Fitting Type	Hose Barb
Flow Rate	67 GPH at 43.5 PSI
Fuel Delivery Type	EFI
Fuel Type	Gas
Gasket Or Seal Included	Yes
Maximum Horsepower	Supports Up To 670
Maximum Pressure	90 PSI
Minimum Pressure	35 PSI
Quantity	Sold Individually
Type	Electric
Brand	Edelbrock
Mfg part #	35943
