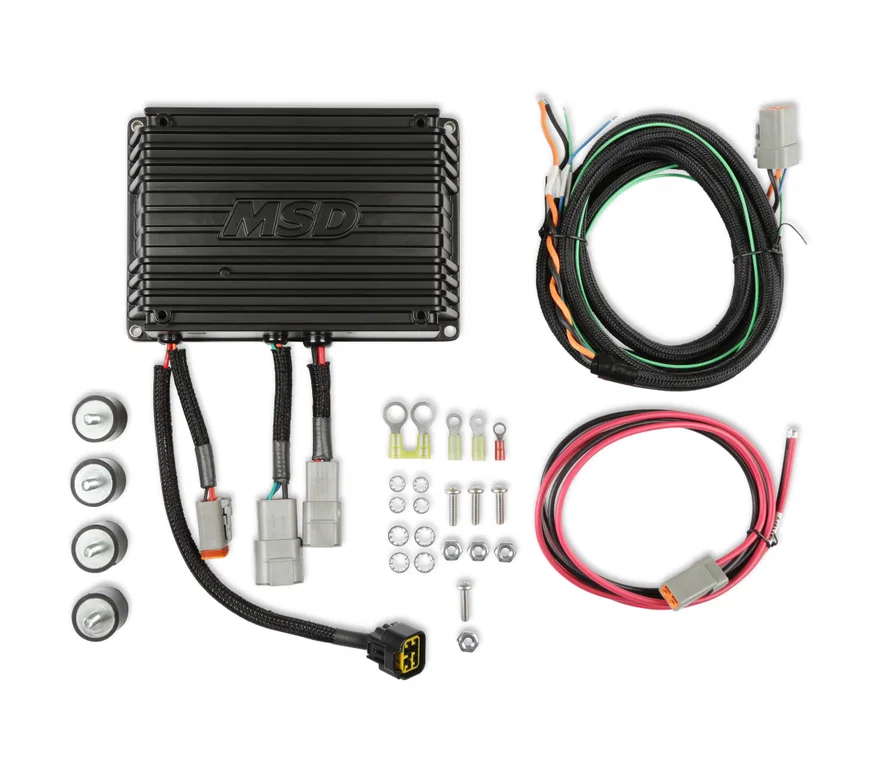

Ignition Box - Race - PRO 600 Single Channel

MSD Ignition Box - Race - PRO 600 Single Channel

Mfg Part #
8001
NP#
MSD8001
Brand
MSD

Universal fit: no vehicle restriction.

  • Operates between 12- 28V
  • Diagnostic LED detects the presence of faults
  • Direct plug-in to MSD Power Grid Controller PN7730
  • Spark current sense and recording for each firing
  • On-the-fly Power Output selection wire
  • Compatible with 8/6/4 cylinder engines
  • Minimum starting voltage 6-volts
  • Reverse battery protection
  • 3 Amps per 1,000 RPM @ 16 Volts and 600 mJ
  • Spark duration of greater than 250 microseconds
  • Over 3A peak spark current when used with the recommended ignition coil PN 82612/3
  • Internally protected from damage caused by internal over-temperature or open / shorted coil
  • Adjustable output energy up to 680 millijoules (mJ)
  • Rated for continuous operation at an output of 600 mJ
$2,080.99 CAD Free shipping in Canada, ships Wednesday, September 30
Free shipping in Canada, ships Wednesday, September 30Free shipping in Canada
Availability: This item is available at a partner warehouse.
Universal Fitment
Book installation at our Service Centre

Does this fit your vehicle?

Description

To further improve efficiency, unused spark energy is recycled back to the ignition capacitor reducing the power drawn from the battery. The Single Channel Pro 600 Ignition provides up to 20% additional spark gap energy and a 40% increase in spark duration over other 600 mJ ignitions available in the market.

Warranty: Manufacturer's Limited 1 Year Warranty
