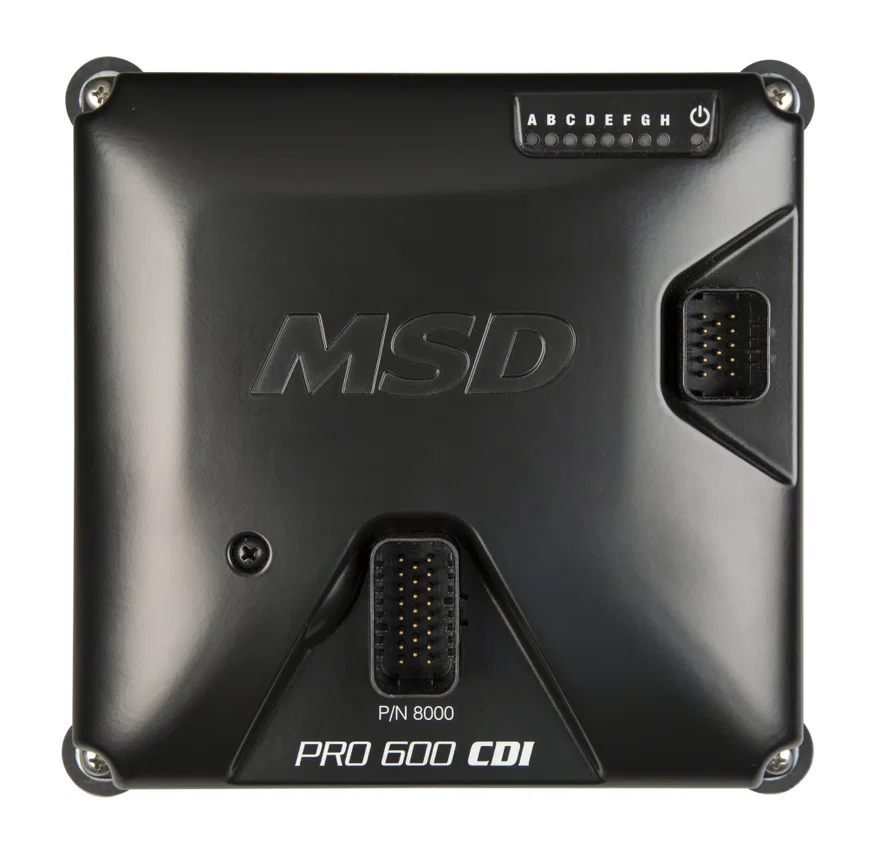

MSD Ignition Box - Race - PRO 600 CDI

Mfg Part #

8000

NP#

MSD8000

Brand

Universal fit: no vehicle restriction.

• Compatible with most EFI systems, including 5V or 12V drivers
• Maximum Operating Voltage 22V
• 3 Amps per 1,000 RPM @ 16 Volts and 600 mJ
• Approved for NHRA Pro Mod Class
• Spark duration of greater than 300 microseconds
• Diagnostic LEDs help troubleshoot issues should they arise
• Continuous 600 mJ operation without risk of failure from overheating
• Plugin interface with MSD Power-Grid, Davis Profiler and OEM LS-style coil harness
• Eight outputs of up to 680 mJ of energy
• 12 Volts minimum required for 600 mJ opereation
• 6 Volts minimum required for starting and running
• Fits most coil-per-plug engines up to eight cylinders (Including four and six cylinders)
• Over 50 Kilovolts output voltage when used with MSD suggested coils
• High-efficiency Alternating Current (AC) power delivery means less voltage draw from your battery or charging system
• On the fly Power Output selection wire, selectable between low power and high power operation
• Direct Plugin to Holley EFI systems
• All necessary wiring harnesses included
• Additional CAN based features when used with Holley EFI - See addendum below
• Reverse Battery Protection
• Protection against shorted or open coils, and over temperature
