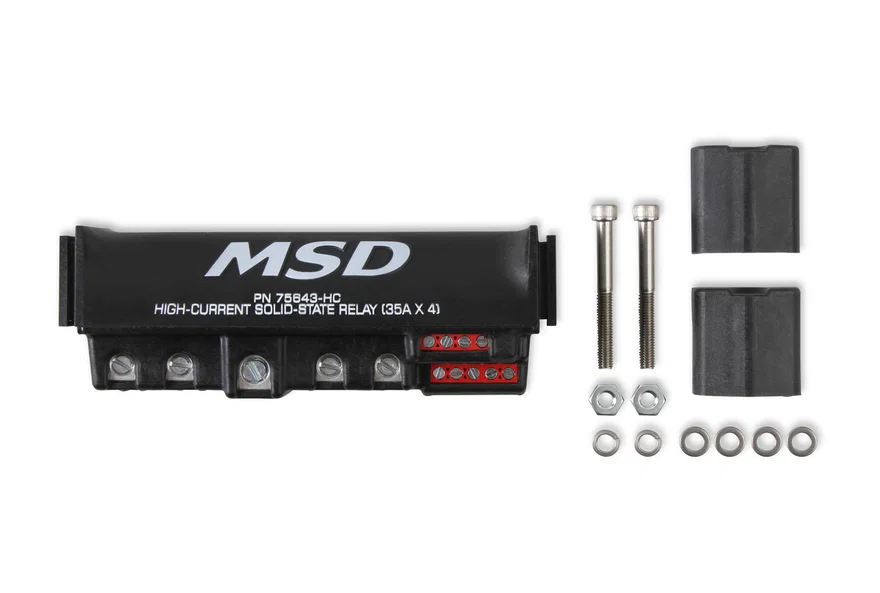

High-Current Solid-State Relay 35Ax4, Black

MSD High-Current Solid-State Relay 35Ax4, Black

Mfg Part #
75643-HC
NP#
MSD75643-HC
Brand
MSD

Universal fit: no vehicle restriction.

  • Combined total continuous current rating of 140 amps
  • Single wire activation by switching power or ground
  • Available in Red or Black
  • Channels can be run in parallel for devices requiring more than 35 Amp single-channel rating
  • Operates from 7-Volts to 20-Volt supply
  • 4 Independent Channels, 35 Amps each continuous or 100 Amps for 8 seconds
  • Over-temp, short circuit and overload protection
  • Multiple mounting options
  • A PWM signal can be used in the Solid-State Relay Module with a maximum frequency of 150 hertz and a duty cycle range from 50% to 90%.
  • Diagnostic LED’s and status indicators
  • Clean, easy install with minimum wiring
$368.99 CAD Free shipping in Canada, ships today
Free shipping in Canada, ships todayFree shipping in Canada
Availability: This product is in our Burlington warehouse.
Universal Fitment
Book installation at our Service Centre

Does this fit your vehicle?

Description

LED status indicators ensure proper wiring and operation of each channel. Should a problem arise, the relay block has built-in automatic over-temp, short circuit, and overload protection, as well as a channel reset. The solid-state high current relay can easily be mounted using the supplied hardware and mounting tabs that can be rotated 90° to accommodate various mounting locations. It's compact and clean design will make your wiring project a breeze.

Warranty: Manufacturer's Limited 1 Year Warranty
