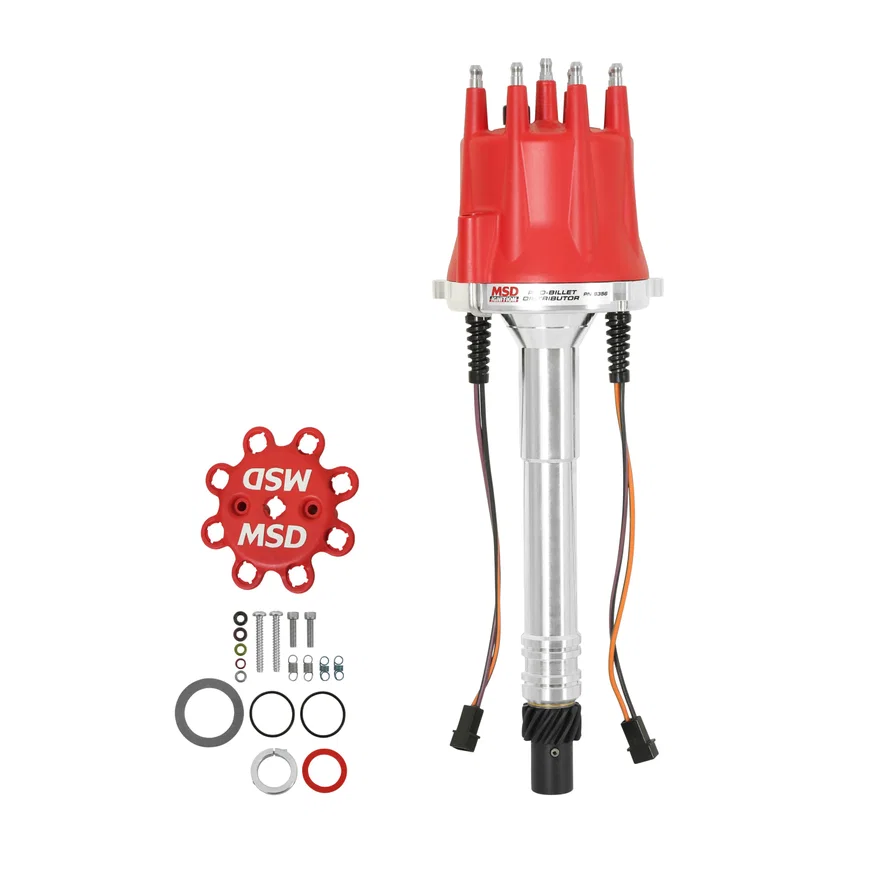

Dual Pickup Chevy V8 Distributor

MSD Dual Pickup Chevy V8 Distributor

Mfg Part #
8356
NP#
MSD8356
Brand
MSD

Universal fit: no vehicle restriction.

  • 0.500” steel shaft is QPQ coated and guided by a sealed ball bearing and an extra long sintered bushing
  • Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
  • Advance weight pins are staked and tig welded to the plate
  • Adjustable slip collar mounting flange for engines with modified deck heights
  • Easy-to-adjust mechanical advance with supplied springs and stop bushings
  • Special oil tract improves lubrication to the distributor and cam gear
  • Mechanical advance assembly can be locked out for crank trigger systems
  • Dual magnetic pickups are placed 180° apart to provide a complete redundant ignition system for racing applications
  • Must be used with an MSD 6, 7, or 8-Series Ignition
  • CNC machined billet aluminum housing and billet aluminum base
  • Nylon pads ensure smooth operation of the advance weights
  • O-ring seals can be installed for oil pressure control (modified blocks only)
$1,056.99 CAD Free shipping in Canada, ships Thursday, October 1
Free shipping in Canada, ships Thursday, October 1Free shipping in Canada
Availability: This item is available at a partner warehouse.
Universal Fitment
Book installation at our Service Centre

Does this fit your vehicle?

Description

A fine-blanked advance cam is TIG-welded on top of the 0.500" QPQ-coated shaft. Added to the advance plate are chro-moly weight pins which are staked and TIGwelded in place. The advance weights are specially coated to reduce friction and nylon pads are mounted on the advance plate to allow the weights to react quickly to rpm changes. This style advance assembly is fully adjustable or can easily be locked out. With two mag pick-ups, racers can have a complete redundant ignition system which can be activated at the flip of a switch. The pickups are placed precisely 180° apart so when you switch to the secondary ignition, the timing remains constant!

Warranty: Manufacturer's Limited 1 Year Warranty
