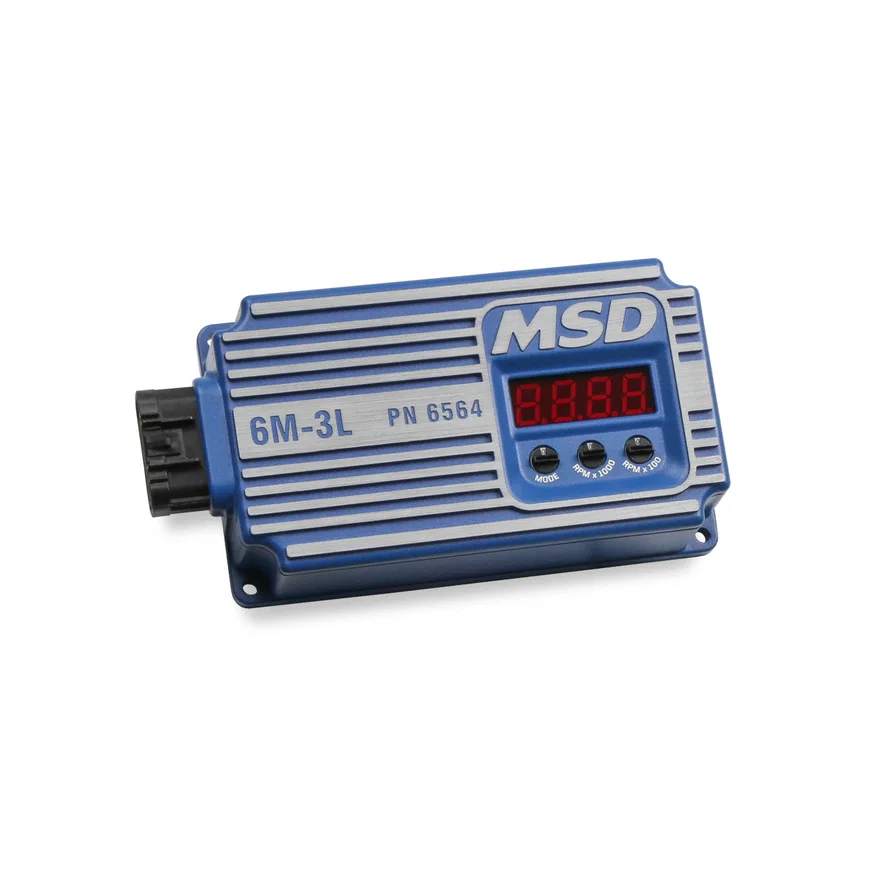

MSD Digital 6M-3L Marine Ignition

Mfg Part #

6564

NP#

MSD6564

Brand

Universal fit: no vehicle restriction.

• Highly efficient, low current draw for extended battery life
• Works on 4, 6 and 8 cylinder engines
• Large, easy to read LED display
• Easy setup of features with three rotary dials on the face of the unit
• Records highest RPM the engine turned for last 20 minutes of run time
• LED display shows rev limit, highest RMP turned, cylinder select, start retard, battery voltage and can be set to tach mode
• Can be triggered by magnetic pickup, amplifier, and points inputs
• 0.8 Amps per 1,000 RPM
• Reverse polarity and overheat protection provide ultimate reliability
• Shift interrupt feature eases shifting
• Built-in Start Retard adjustable in 0⁰, 10⁰ or 20⁰ increments for quick, easy starts and extend starter life
• Sealed connector for clean wiring and trouble-free operation
• 535V w/ Blaster Coil / 550V w/ HVC Coil PN 8250
• Fully potted housing to withstand demanding marine conditions
• Full delivery of spark energy and easy starting down to 6 volts battery supply
• MSD’s smoothest rev limiter yet, protecting parts and saving your engine
