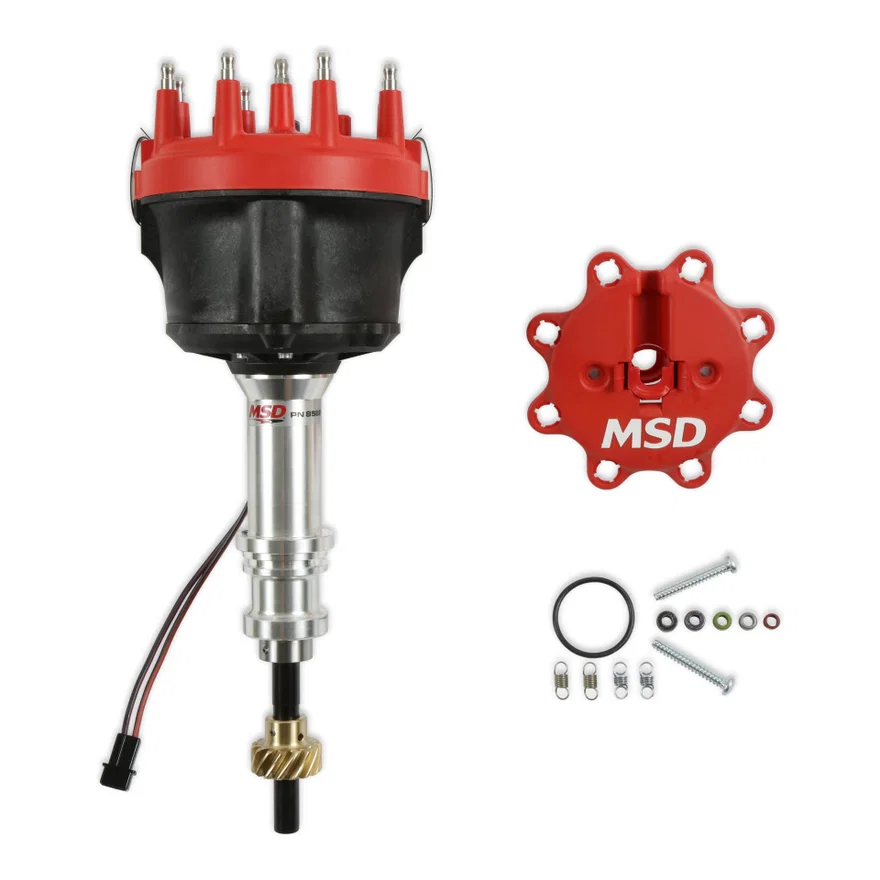

MSD Billet Distributor - Ford - Small Block V8 - Bronze Gear

Mfg Part #

85827

NP#

MSD85827

Brand

Universal fit: no vehicle restriction.

• Must be used with an MSD Ignition Control
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• Supplied with Cap-A-Dapt and rotor (accepts MSD socket style caps)
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Gear machined from AMPCO 45 aluminum bronze containing 5% Nickel
• CNC machined billet 6061-T6 aluminum housing
• Nylon pads ensure smooth operation of the advance weights
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing
• Pre-installed Bronze Gear for aftermarket billet roller camshafts
• Advance weight pins are staked and TIG welded to the plate
• Mechanical advance assembly can be locked out for crank trigger systems
