Which vehicles does the Lakewood 15020 fit?

Fits 1984 to 1992 Chevrolet Camaro, and 1 more make. SAFETY BELLHOUSING; 4.684 IN. BORE DIA.; 6.45 IN. DEPTH; 2.00X3.15 IN. FORK OPENING; BW T-5/GM MUNCIE/SAGINAW BW T-10 TRANSMISSION; INCL. BRACKET FOR HYD CLUTCH SLAVE CYLINDER

How much is shipping and when does it ship?

Ground shipping in Canada is free on orders of $100 and up, $9.99 under that.

Can Northern Performance install it?

Yes. Buy it online and have us install it at our Service Centre. The Service Centre is at 1164 Walkers Line, Burlington, Ontario.

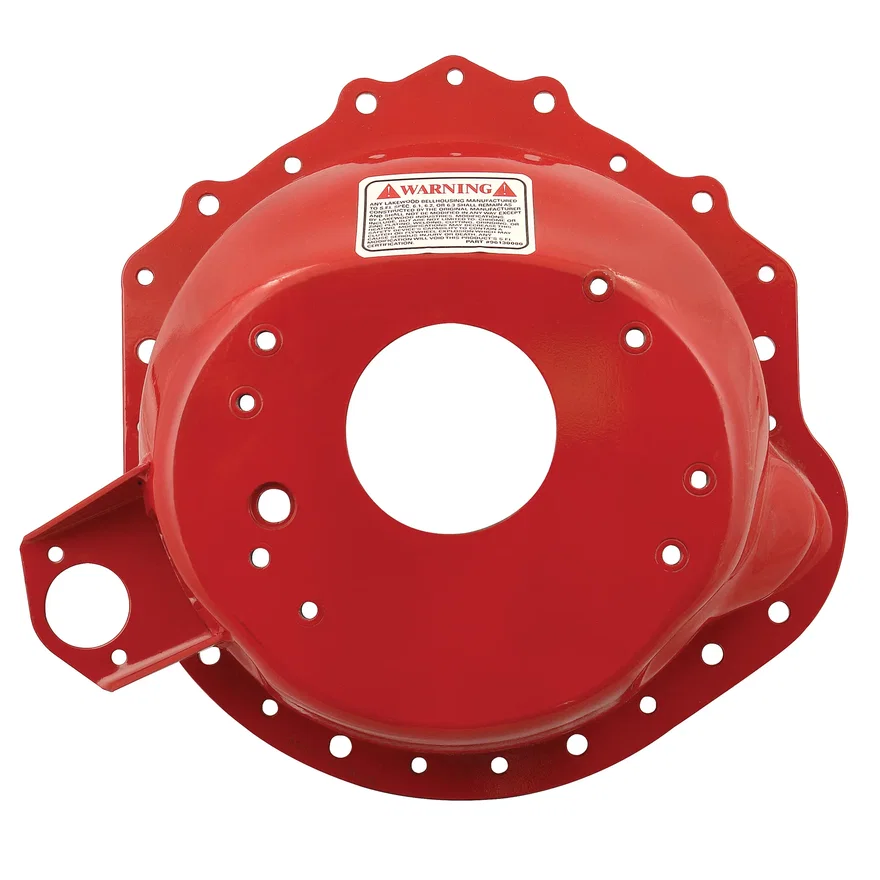

Lakewood Bellhousing - GM

Mfg Part #: 15020
NP#: LAK15020
Brand
Fitment Note: SAFETY BELLHOUSING; 4.684 IN. BORE DIA.; 6.45 IN. DEPTH; 2.00X3.15 IN. FORK OPENING; BW T-5/GM MUNCIE/SAGINAW BW T-10 TRANSMISSION; INCL. BRACKET FOR HYD CLUTCH SLAVE CYLINDER

Fits 1984 to 1992 Chevrolet Camaro, and 1 more make. See every vehicle

For 1984-1992 Camaro And Firebird Chassis
Designed for use with Factory Hydraulic Clutch Linkage and Pull Cable with External Slave Cylinder
Drilled for 17 degree canted BW T5
S.F.I. 6.1 Approved
Fits 153 And 168 Tooth Flywheel
Bellhousing is 6.45 inches Deep
Block Plate And Grade 8 Hardware Included
Hydro-formed Designed Bellhousing is Roto-brated After Welding
Red Powder Coated Finish

$1,837.99 CAD

Free shipping in Canada

Availability:

Contact [email protected] to check before you order.

Book installation at our Service Centre

Does this fit your vehicle?

Description

Designed for use with factory hydraulic clutch linkage and pull-style cable with external slave cylinder found on third-generation F-body cars. This Lakewood bellhousing is laser cut to improve the speed and accuracy of manufacturing, then roto-brated after welding and hydro-formed to relieve any stress created during manufacturing. S.F.I. 6.1 certified. Features a durable red powder-coated finish for years of corrosion-free service. Mig welded thread inserts for transmission mounting, pivot ball mounting, and linkage brackets where needed.

Warranty: Manufacturer's Limited 90 Day Warranty

Brand	Lakewood
Category	Transmission and Drivetrain
Clutch Operation	Mechanical Fork with External Slave
Color	Red
Emission Code	5
Engine	Chevrolet Small Block Gen I
Engine Make	Chevrolet
Flywheel	153 or 168 Tooth
Grade Type	Performance
Height	6.45
Material	Steel
part type	Transmission Bell Housing
Product Type	Bellhousing
SFI Approved	Yes
SFI Certification	6.1
Transmission	TKX GM
Transmission Bore Diameter	4.685 in
Transmission Type	Manual
Weight	36 lb
Brand	Lakewood
Mfg part #	15020

Fits these vehicles

Year	Make	Model	Submodel	Engine
1984	Chevrolet	Camaro	Berlinetta, Sport, Z28	5.0L 305 V8
1985 - 1986	Chevrolet	Camaro	Berlinetta, Iroc-Z, Sport, Z28	5.0L 305 V8
1987	Chevrolet	Camaro	Iroc-Z, LT, Sport, Z28	5.0L 305 V8, 5.7L 350 V8
1988	Chevrolet	Camaro	Base, Iroc-Z	5.0L 305 V8, 5.7L 350 V8
1989 - 1990	Chevrolet	Camaro	Iroc-Z, RS	5.0L 305 V8, 5.7L 350 V8
1991	Chevrolet	Camaro	RS, Z28	5.0L 305 V8, 5.7L 350 V8
1992	Chevrolet	Camaro	RS, RS Heritage Edition, Z28, Z28 Heritage Edition	5.0L 305 V8, 5.7L 350 V8
1984 - 1986	Pontiac	Firebird	Base, S/E, Trans Am	5.0L 305 V8
1987	Pontiac	Firebird	Base, Trans Am	5.0L 305 V8
