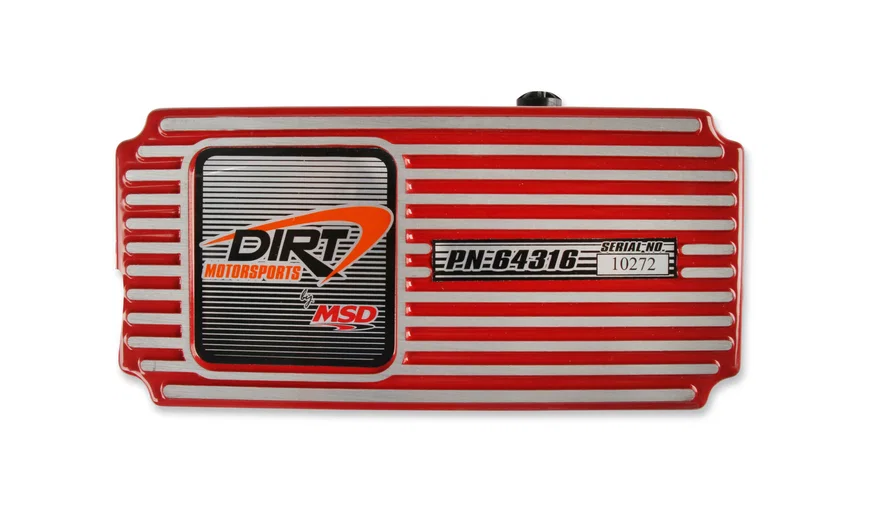

6ALN Ignition Control, DIRT

MSD 6ALN Ignition Control, DIRT

Mfg Part #
64316
NP#
MSD64316
Brand
MSD

Universal fit: no vehicle restriction.

  • Clear plastic base plate for easy tech inspection
  • 6-pin Weathertight connector, mandatory for NASCAR use
  • 110 millijoules per spark up to 15,000 RPM
  • Designed for circle track racing with NASCAR mandated connectors and clear epoxy potting compound for vibration protection
  • Supplied with rubber shock mounts
  • Built-in Soft Touch Rev Control is fixed to 7,600 RPM
  • 470 primary voltage output to coil
  • Accepts breaker points, amplifier and magnetic pickup trigger inputs
  • Multiple spark, capacitive discharge ignition control
  • Works on 12 - 18 volt electrical system
  • Multiple sparks for 20 degrees of crankshaft rotation
  • Programmable for 4, 6, or 8-cylinders by cutting red/blue wire loops
  • Circuit board is encased in a clear two part silicone elastomer
$1,152.99 CAD Free shipping in Canada, ships Thursday, October 1
Free shipping in Canada, ships Thursday, October 1Free shipping in Canada
Availability: This item is available at a partner warehouse.
Universal Fitment
Book installation at our Service Centre

Does this fit your vehicle?

Description

The 6ALN for DIRT Motorsports has a built-in Rev Control fixed to 7,600 RPM.. The rev control will save your engine from over-rev damage caused by missed shifts or driveline failure.

Warranty: Manufacturer's Limited 1 Year Warranty
