6-BTM Boost Timing Master

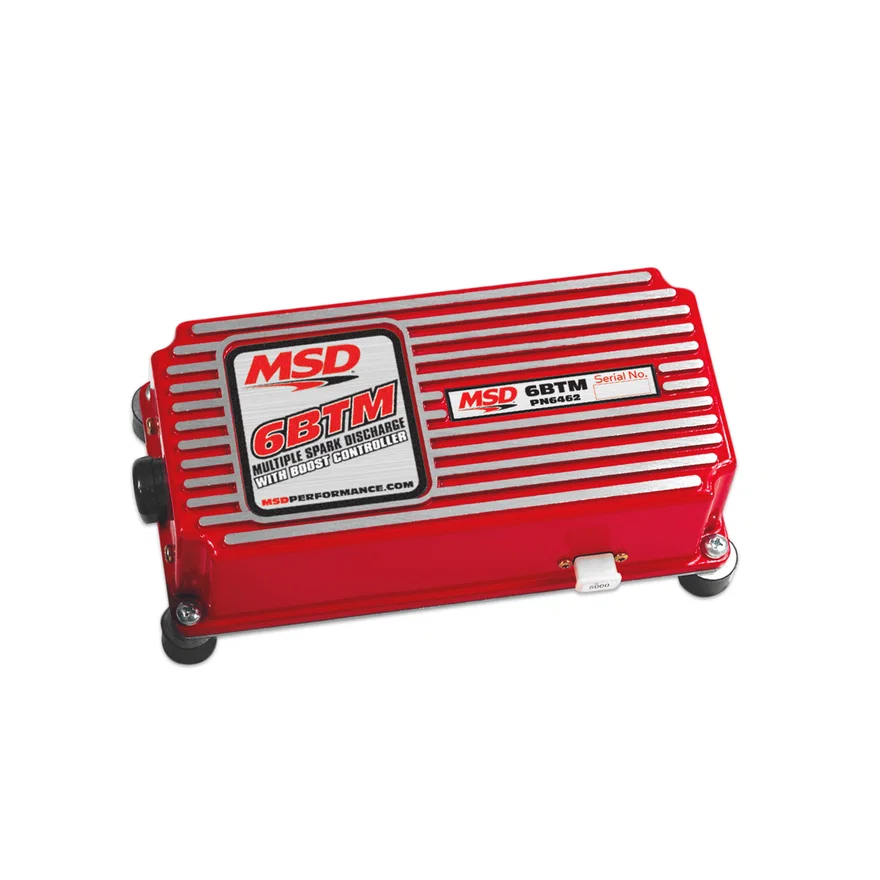

MSD 6-BTM Boost Timing Master

Mfg Part #
6462
NP#
MSD6462
Brand
MSD

Universal fit: no vehicle restriction.

  • Retard the ignition timing 1 degrees-3 degrees per pound of boost, maximum of 15 degrees, with dash mounted adjustable control knob
  • 110 millijoules per spark up to 15,000 RPM
  • 470 primary voltage output to coil
  • 12-15 Volts, 7 Volt Start
  • CARB E.O. Approved
  • Programmable for 4, 6, or 8-cylinders by cutting red/blue wire loops
  • Accepts breaker points, amplifier and magnetic pickup trigger inputs
  • Built-in Soft Touch Rev Control is adjustable with RPM Modules
  • Supplied with rubber shock mounts
  • Supplied with 3,000, 6,000, 7,000 & 8,000 RPM Module
  • Works on 12 - 18 volt electrical system
  • Multiple spark, capacitive discharge ignition control
  • Multiple sparks for 20° of crankshaft rotation
$1,280.99 CAD
Free shipping in Canada
Availability: Product is backordered at the supplier right now, availability is unknown at this time. Contact us
Universal Fitment
Book installation at our Service Centre

Does this fit your vehicle?

Description

A dash-mounted control knob lets you adjust the amount of timing retard. It can be adjusted from 0 degrees per pound of boost to 3 degrees per pound (up to 15 degrees). The 6 BTM also shares the Soft Touch Rev Control of the 6AL Ignition for overrev protection. The BTM is supplied with rubber shock mounts and rpm modules for 3,000, 6,000, 7,000, and 8,000 rpm.

Warranty: Manufacturer's Limited 1 Year Warranty
