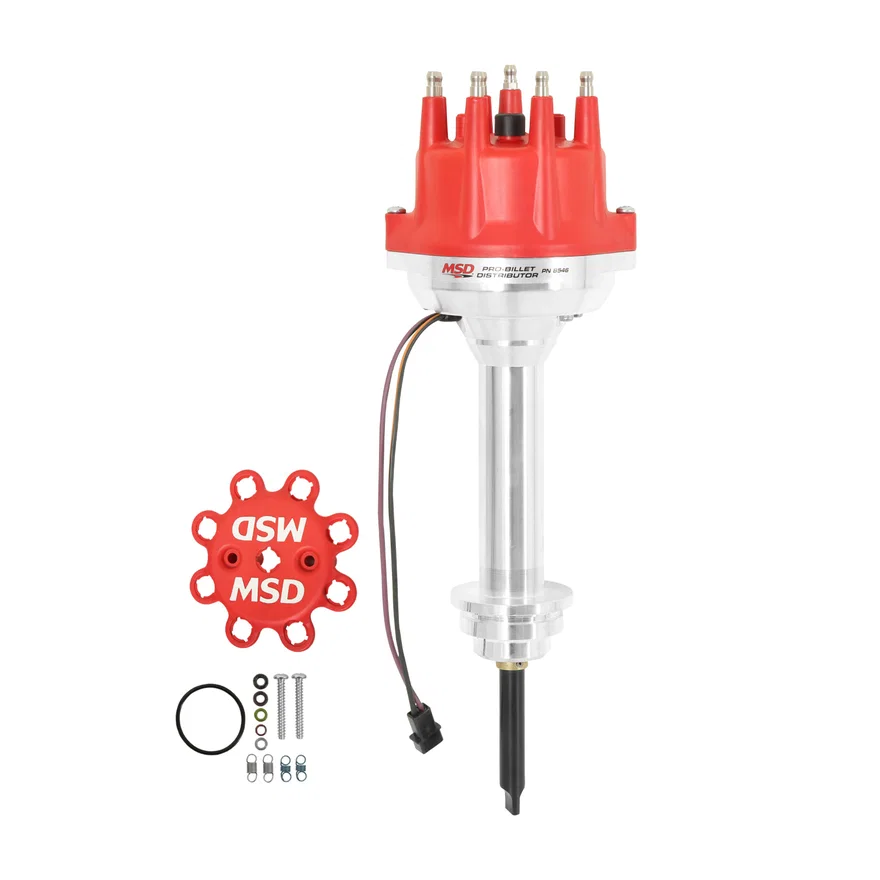

MSD Chrysler 426,440 Pro-Billet Distributor

Mfg Part #

8546

NP#

MSD8546

Brand

Fits 1966 to 1972 Chrysler 300, Imperial, Newport and 2 more models, and 2 more makes. See every vehicle

• Smaller diameter CNC machined billet aluminum housing and billet aluminum base clears aftermarket heads and valve covers
• No CARB Exemption Order Number
• Advance weight pins are staked and tig welded to the plate
• Mechanical advance assembly can be locked out for crank trigger systems
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Must be used with an MSD Ignition Control
• Supplied with small diameter cap with HEI style terminals and race rotor (will accept 8441 Cap-A-Dapt)
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• Polished steel shaft is QPQ coated and guided by two sealed ball bearings
• Nylon pads ensure smooth operation of the advance weights
