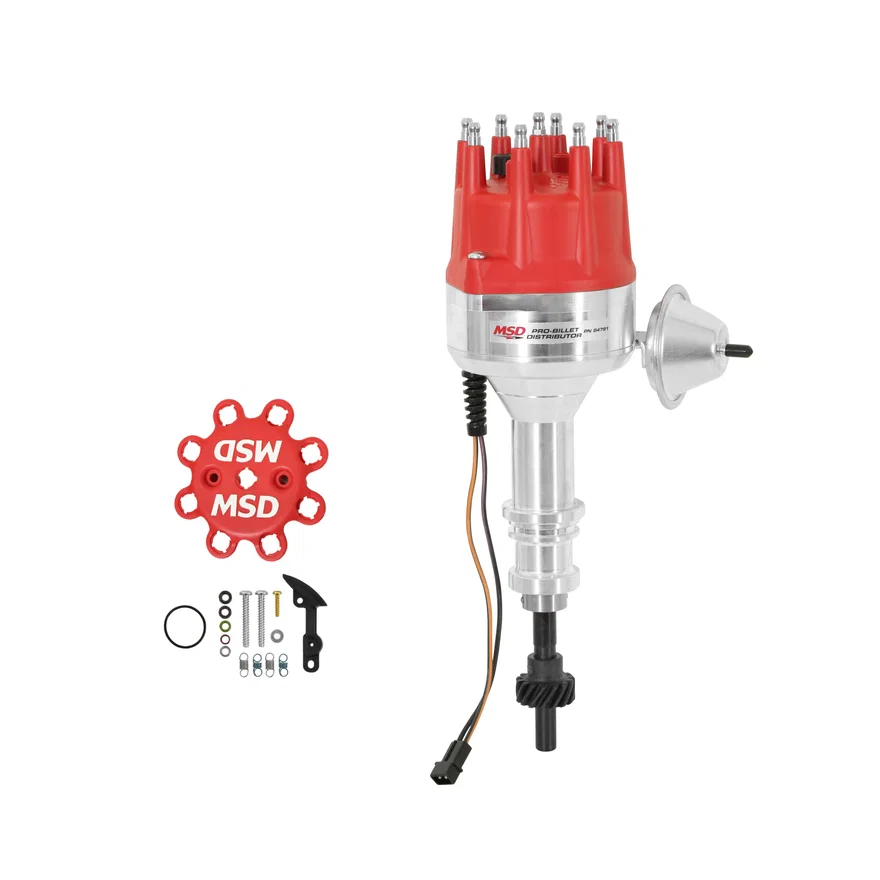

MSD 289/302 Street Pro-Billet w/Steel Gear for Ford, Mercury and Lincoln

Mfg Part #

84791

NP#

MSD84791

Brand

Fits 1962 to 1996 Ford 300, Bronco, Country Sedan and 36 more models, and 2 more makes. See every vehicle

• Vacuum advance canister for improved economy (can be locked out)
• Supplied with small diameter cap with HEI style terminals and race rotor (will accept 8441 Cap-A-Dapt)
• Includes Steel Gear, compatible with hydraulic roller camshafts
• Advance weight pins are staked and tig welded to the plate
• Nylon pads ensure smooth operation of the advance weights
• Billet housing is 5/8” smaller in diameter than stock Ford distributors
• CARB E.O. Approved
• CNC machined billet aluminum housing and billet aluminum base
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Mechanical advance assembly can be locked out for crank trigger systems
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Must be used with an MSD Ignition Control
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing
