12 Position Trim Pot

12 Position Trim Pot

Mfg Part #
30-2056
NP#
AEL30-2056
Brand
AEM Electronics

Universal fit: no vehicle restriction.

  • 12 Position Trim Pot Performance Specifications
  • Total Resistance: 14.3KO
  • Cycles Minimum: 10,000
  • Positions: 12
  • Degree Rotation: 330
  • Mounting: 3/8" Hole
  • Jam Nut: 1/2" Hex
  • Knob Set Screw: 1/16" Allen
  • Supply Current: 5 Vdc
  • Over mold weatherproof body with 12" leads, 1 Red (Supply Voltage 5Vdc +/- .5), 1 Black (Ground), 1 White (Output)
$65.99 CAD Ships Sep 18
Availability: This product is in one of our warehouses.
Ships Sep 18
Universal Fitment
Book installation at our Service Centre

Does this fit your vehicle?

Description

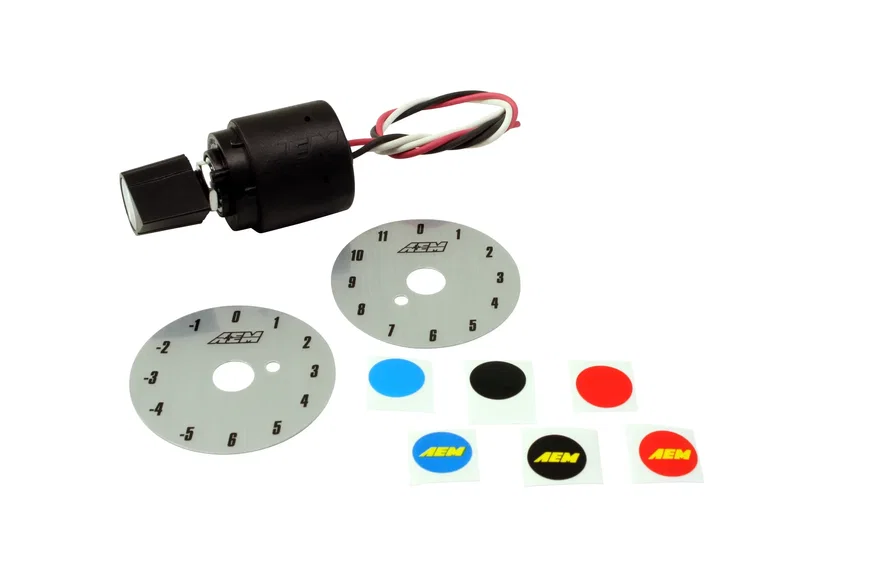

The Universal 12 Position Trim Pot is for use on virtually any Engine Management System, such as the AEM EMS. Use the Trim Pot to adjust a number of trims, including ignition timing, fuel, boost, etc. The Universal 12 Position Trim Pot includes: 12 Position Trim Pot with Flying Lead, 2 Brushed Silver Trim Position Decals with ranges from -5 to +6 and 0 to +11, Blue/Red/Black AEM Logo Knob Decals & Blue/Red/Black Colored Knob Decals. Click here for more AEM sensors and connectors

Warranty: Manufacturer's 1 Year Warranty
